Plan for DB2 on Windows

Plan for DB2 on Windows

+
Search Tips | Advanced Search

WebSphere Portal supports the following DB2 JDBC drivers...

DB2 JDBC Type 2 (CLI)
DB2 JDBC Type 4 (JCC)

When the DB2 Universal JDBC driver (type 4) is used, connect to the database directly. Do not connect to an alias database (gateway). Specify the real database name in...

JDBC connection URL dbdomain.DbUrl
Database name property dbdomain.DbName

Prior to transfering data to IBM DB2 Universal Database Enterprise Server Edition, some fix packs are required.
Ensure the database that you plan to use is supported by this version of WebSphere Portal.
The database names and users on this page are suggested values only. Replace with your values.
The database name cannot exceed eight characters and can only contain letters and numbers.
When using the same database user ID, the value for the database name, database server node, or schema name must be unique.
Java Content Repository (JCR) stores data for applications such as Personalization WCM.
In a local database environment, WebSphere Portal and DB2 are installed on the same system.

When a JDBC type 2 connections is used, WebSphere Portal and DB2 Connect are installed on one system (the local system). The DB2 server is installed on a separate system (the remote system).

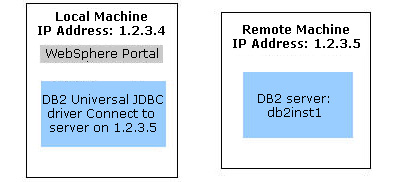

For JDBC type 4 connections, no DB2 Connect installation is required on the system that runs WebSphere Portal. The DB2 Universal JDBC driver that is supplied with DB2 is copied to this system. It is used within the Java Virtual Machine of WebSphere Portal and connects directly to the remote DB2 server.

Review the different databases shown in the following table and replace these values with the values in your environment; schema names must be different when the database is shared. While configuring WebSphere Portal to use one database is technically possible, using separate databases can improve scalability and performance. The architecture allows each of these databases to exist in one or many instances. However, the recommended architecture uses the default instance (db2inst1) that is created by the installation program.

Application Database name Space required
WebSphere Portal
Used for the portal (at a minimum) or to hold all data. Stores information about user customization, such as pages, and user profile and login information.
release
comm
cust

Depends on the number of users and portal objects, such as pages and portlets.
Personalization,WCM
Contains documents, personalization rules, personalization campaigns, and document library configuration information.
jcrdb Depends on the number and size of Personalization rules and campaigns, and the number and size of items and elements created in WCM .
Feedback
Contains the information that is logged by your Web site for analysis of site activity and generating reports.
fdbkdb Depends on the amount of traffic to the site. The amount of data that is logged per login-enabled page can vary.
LikeMinds
Contains the recommendations to be displayed to users when their interactions with your Web site have been analyzed and predictions generated.
lmdb Depends on the amount of traffic to the site.

Review the tables and types of objects owned by each user. The architecture allows each of the following users to exist in the same database. All table spaces are approximately 2.8 GB by default. The size increases with the use of Java Content Repository.

Application Database user placeholder Function
WebSphere Portal releaseusr
communityusr
customizationusr Core user who owns approximately 230 tables, used for WebSphere Portal core objects, which includes tables that store the user customizations made to pages.
Java Content Repository jcr Java Content Repository user who owns at least 1130 tables. The number could be higher depending on usage.
Feedback feedback Feedback user who owns approximately 50 tables used for logging site and personalization usage.
LikeMinds lmdbusr LikeMinds user who owns approximately 15 tables used to hold the Web site usage analysis routines and recommendation text.

Parent topic
Planning for databases

Related concepts
Supported hardware and software

Related tasks

Which distributed edition of DB2 Universal Database V8 is right for you?
Which distributed edition of DB2 Universal Database V9 is right for you?

JDBC connection URL	dbdomain.DbUrl
Database name property	dbdomain.DbName

Application	Database name	Space required
WebSphere Portal Used for the portal (at a minimum) or to hold all data. Stores information about user customization, such as pages, and user profile and login information.	release comm cust	Depends on the number of users and portal objects, such as pages and portlets.
Personalization,WCM Contains documents, personalization rules, personalization campaigns, and document library configuration information.	jcrdb	Depends on the number and size of Personalization rules and campaigns, and the number and size of items and elements created in WCM .
Feedback Contains the information that is logged by your Web site for analysis of site activity and generating reports.	fdbkdb	Depends on the amount of traffic to the site. The amount of data that is logged per login-enabled page can vary.
LikeMinds Contains the recommendations to be displayed to users when their interactions with your Web site have been analyzed and predictions generated.	lmdb	Depends on the amount of traffic to the site.

Application	Database user placeholder	Function
WebSphere Portal	releaseusr communityusr customizationusr	Core user who owns approximately 230 tables, used for WebSphere Portal core objects, which includes tables that store the user customizations made to pages.
Java Content Repository	jcr	Java Content Repository user who owns at least 1130 tables. The number could be higher depending on usage.
Feedback	feedback	Feedback user who owns approximately 50 tables used for logging site and personalization usage.
LikeMinds	lmdbusr	LikeMinds user who owns approximately 15 tables used to hold the Web site usage analysis routines and recommendation text.
