Messaging

JMS

Connect

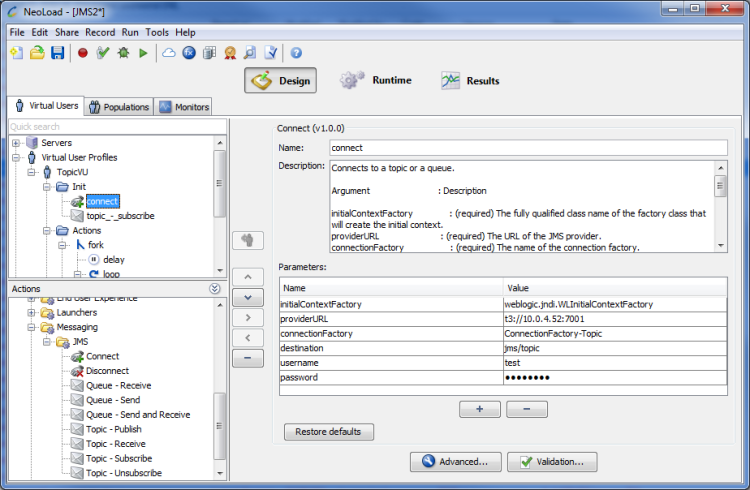

The Connect JMS Advanced action is used to connect to a topic or a queue.

Supported JMS API versions: 1.1 and 2.0.

• Important: NeoLoad does not include any JMS implementation JAR file. It must be downloaded from your JMS provider and put in the extlib directory of your installation.

Parameters

• initialContextFactory (required): The fully qualified class name of the factory class that will create the initial context.
• providerURL (required): The URL of the JMS provider.
• connectionFactory (required): The name of the connection factory.
• destination (required): The name of the (topic or queue) destination. It's used as the connection ID. A User Path cannot have two connections to a same destination.
• username (optional): The username used to create the connection.
• password (optional): The password used to create the connection.
• sessionTransacted (optional): A boolean to indicate whether the session is transacted.
• acknowledgeMode (optional): Indicates whether the consumer or the client will acknowledge any messages it receives; ignored if the session is transacted. Legal values: AUTO_ACKNOWLEDGE, CLIENT_ACKNOWLEDGE or DUPS_OK_ACKNOWLEDGE.
• jndiProperties (optional): JNDI properties to construct the initial context. The value must follow the pattern name=value separated by '\n'. Example: datasource=jdbc/aqjmsuserDataSource.

Examples

An example of an SSL connection to a Tibco queue:

• initialContextFactory: com.tibco.tibjms.TibjmsQueueConnectionFactory
• providerURL: ssl://tibco.example.com:7222
• connectionFactory: SSLQueueConnectionFactory
• destination: myQueueName
• username: userName
• password: password
• jndiProperties: com.tibco.tibjms.naming.security_protocol=ssl,com.tibco.tibjms.naming.ssl_enable_verify_host=true,com.tibco.tibjms.naming.ssl_enable_verify_hostname=false,com.tibco.tibjms.naming.ssl_trusted_certs=${NL-CustomResources}/my_certificate.cer

The SSL certificate must be placed in the ‘custom-resources' folder of the NeoLoad project. The ressources contained in this folder are automatically pasted into the Load Generators. The ${NL-CustomResources} variable is used to access this folder from the Load Generators.

An example of connecting to a Oracle Weblogic topic:

• initialContextFactory: weblogic.jndi.WLInitialContextFactory
• providerURL: t3://10.0.0.51:7001
• connectionFactory: myTopicFactory
• destination: myTopicName
• username: user
• password: password

Disconnect

The Disconnect JMS Advanced action is used to disconnect from a topic or a queue.

Parameter

• destination (required): The name of the (topic or queue) destination.

Example

An example of disconnecting from a queue:

destination: myQueueName

Queue - Send

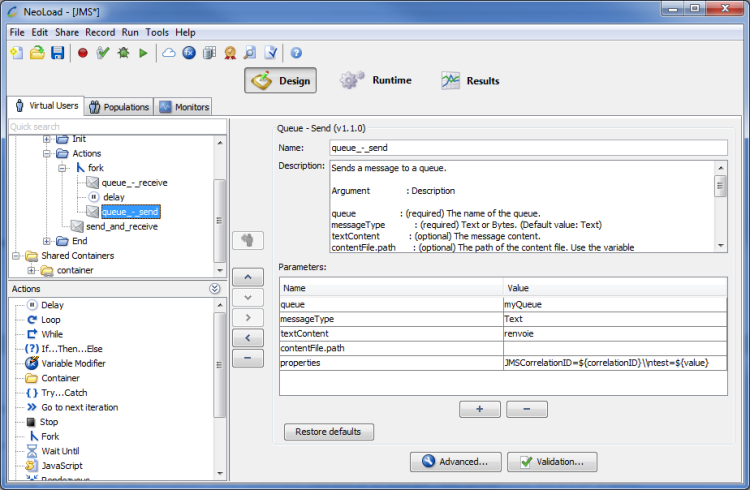

The Queue - Send JMS Advanced action is used to send a message to a queue.

Parameters

• queue (required): The name of the queue.
• messageType (required): Text or Bytes.
• textContent (optional): The message content.
• contentFile.path (optional): The path of the content file. Use the variable '${NL-CustomResources}' to access on the Load Generator the synchronized resources located in the 'custom-resources' folder of the project.
• contentFile.charset (optional): The charset of the file.
• contentFile.parse (optional): Whether or not to parse the file to replace NeoLoad variables.
• expiration (optional): The expiration time (in ms) before the message becomes obsolete. When set to default value (0) the message does not expire.
• priority (optional): The priority of the message.
• persistentDeliveryMode (optional): Whether or not to set DeliveryMode.NON_PERSISTENT.
• properties (optional): You can setup the name, the value and the class (type) of value. Default type is String. The value must follow the pattern name=[class]value separated by "\\n".
  Example : JMSCorrelationID=${correlationID}\\ntest=${value}.

  Tip: Click the pencil icon to add a row per property when editing in the multi-lines dialog.

Examples

An example of sending a message on a queue:

• queue: myQueueName
• messageType: Text
• textContent: my content
• properties: my_property=my_value

An example of sending a bytes message from a file:

• queue: myQueueName
• messageType: Bytes
• contentFile.path: ${NL-CustomResources}\myfile
• contentFile.parse: false
• priority: 1
• persistentDeliveryMode: false
• properties: size=[java.lang.Integer]1500

Queue - Send and Receive

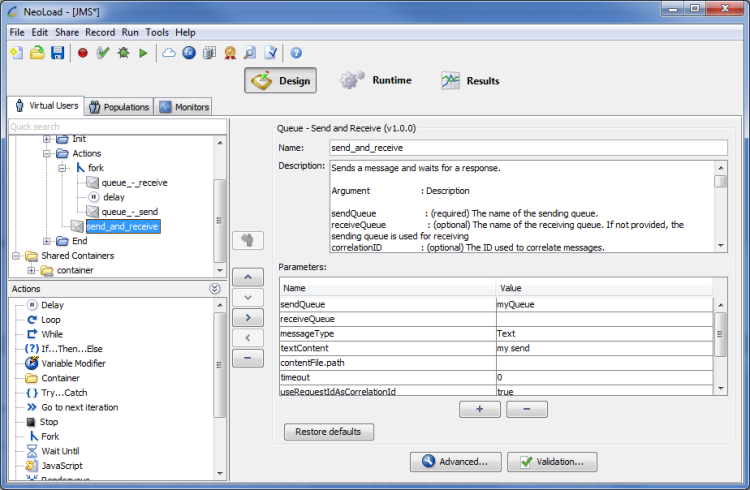

The Queue - Send and Receive JMS Advanced action is used to send a message. It waits for a response.

Parameters

• sendQueue (required): The name of the sending queue.
• receiveQueue (optional): The name of the receiving queue. If not provided, the sending queue is used for receiving.
• correlationID (optional except if parameter useRequestIdAsCorrelationId is set to true): The ID used to correlate messages.
• messageType (required): Text or Bytes.
• textContent (optional): The message content.
• contentFile.path (optional): The path of the content file. Use the variable '${NL-CustomResources}' to access on the Load Generator the synchronized resources located in the 'custom-resources' folder of the project.
• contentFile.charset (optional): The charset of the file.
• contentFile.parse (optional): Whether or not to parse the file to replace NeoLoad variables.
• expiration (optional): The expiration time (in ms) before the message becomes obsolete. When set to default value (0) the message does not expire.
• priority (optional): The priority of the message.
• persistentDeliveryMode (optional): Whether or not to set DeliveryMode.NON_PERSISTENT.
• properties (optional): You can setup the name, the value and the class (type) of value. Default type is String. The value must follow the pattern name=[class]value separated by "\\n".
  Example: size=[Integer]150.

  Tip: Click the pencil icon to add a row per property when editing in the multi-lines dialog.

• useRequestIdAsCorrelationId (optional): If set to true, the JMSMessageID request will be used for correlation, otherwise the JMSCorrelationID request will be used.
• useResponseIdAsCorrelationId (optional): If set to true, the JMSMessageID response will be used for correlation, otherwise the JMSCorrelationID response will be used.
• timeout (optional): Timeout (in ms) applied to wait a message. 0=none.
• jmsSelector (optional): The message selector to extract only the message that respect the selector condition.
• writeMessageInResponse (optional): Whether or not the response should contain the message.
• failOnTimeout (optional): If set to true, the action fails when timeout is reached.

Examples

An example of send and receive on one queue:

• sendQueue: myQueueName
• correlationID : my_id
• messageType: Text
• textContent: my content
• properties: my_property=my_value
• timeout: 0
• jmsSelector: my_property='my_value'
• writeMessageInResponse: false

An example of send and receive on two queues:

• sendQueue: mySendingQueueName
• sendQueue: myReceivingQueueName
• messageType: Text
• textContent: my content
• properties: my_property=my_value
• useRequestIdAsCorrelationId: true
• useResponseIdAsCorrelationId: true
• timeout: 10000
• jmsSelector: my_property='my_value'

Queue - Receive

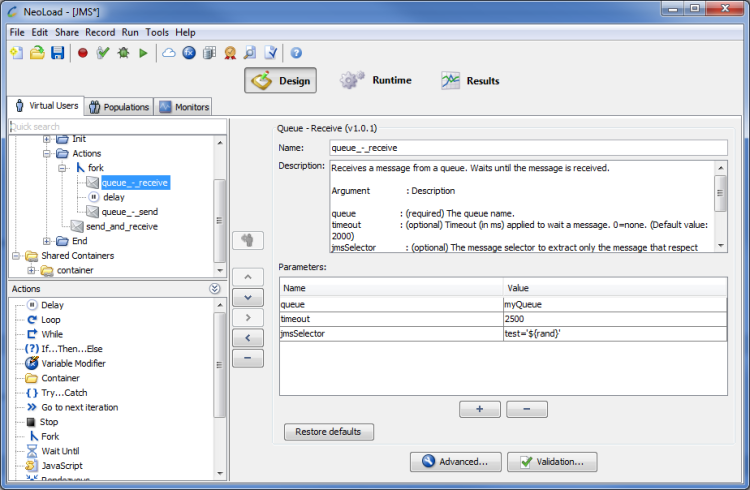

The Queue - Receive JMS Advanced action is used to receive a message from a queue. It waits until the message is received.

Parameters

• queue (required): The queue name.
• timeout (required): Timeout (in ms) applied to wait a message. 0=none.
• jmsSelector (required): The message selector to extract only the message that respect the selector condition.
• writeMessageInResponse (required): Whether or not the response should contain the message.
• failOnTimeout (required): If set to true, the action fails when timeout is reached.

Example

An example of receiving message:

• queue: myQueueName
• timeout: 5000
• jmsSelector: my_property='my_value'
• writeMessageInResponse: false
• failOnTimeout: false

Topic - Subscribe

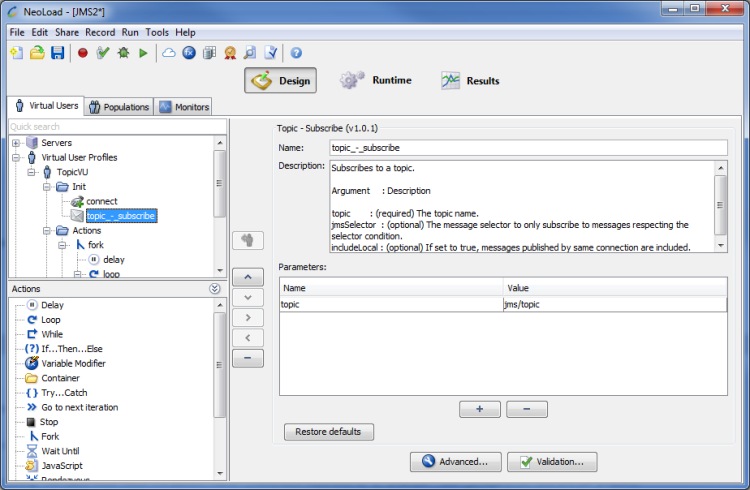

The Topic - Subscribe JMS Advanced action is used to subscribe to a topic.

Parameters

• topic (required): The topic name.
• jmsSelector (optional): The message selector to only subscribe to messages respecting the selector condition.
• includeLocal (optional): If set to true, messages published by same connection are included.

Example

An example of topic subscription:

• topic: myTopicName
• jmsSelector: my_property='my_value'
• includeLocal: false

Topic - Unsubscribe

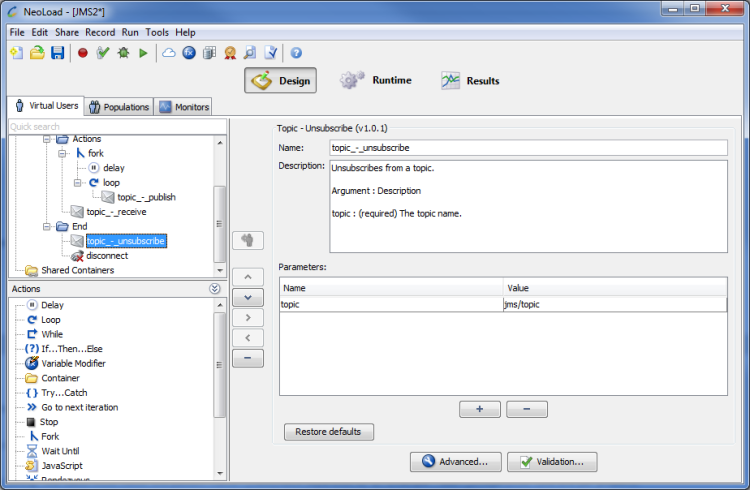

The Topic - Unsubscribe JMS Advanced action is used to unsubscribe from a topic.

Parameter

• topic (required): The topic name.

Example

An example of unsubscribing from a topic:

• topic: myTopicName

Topic - Publish

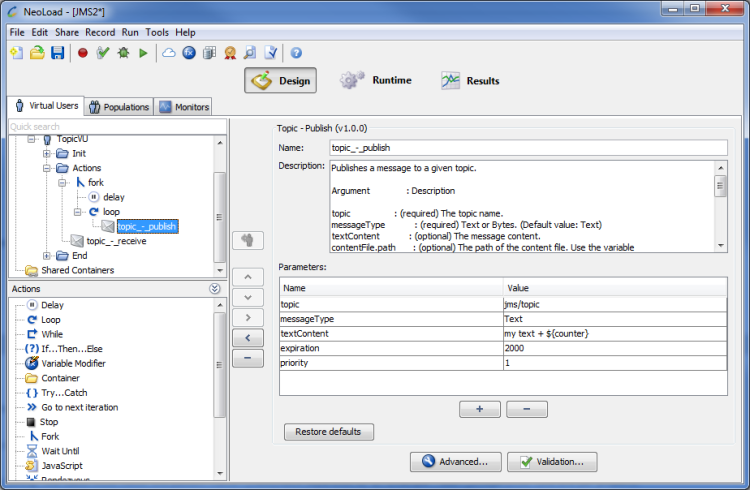

The Topic - Publish JMS Advanced action is used to publish a message to a given topic.

Parameters

• topic (required): The topic name.
• messageType (required): Text or Bytes.
• textContent (optional): The message content.
• contentFile.path (optional): The path of the content file. Use the variable '${NL-CustomResources}' to access on the Load Generator the synchronized resources located in the 'custom-resources' folder of the project.
• contentFile.charset (optional): The charset of the file.
• contentFile.parse (optional): Whether or not to parse the file to replace NeoLoad variables.
• expiration (optional): The expiration time (in ms) before the message becomes obsolete. When set to default value (0) the message does not expire.
• priority (optional): The priority of the message.
• persistentDeliveryMode (optional): Whether or not to set DeliveryMode.NON_PERSISTENT.
• properties (optional): You can setup the name, the value and the class (type) of value. Default type is String. The value must follow the pattern name=[class]value separated by "\\n".
  Example: size=[Integer]150.

  Tip: Click the pencil icon to add a row per property when editing in the multi-lines dialog.

Examples

An example of sending a text message:

• topic: myTopicName
• messageType: Text
• textContent: my content

An example of connecting to a Oracle Weblogic topic:

• initialContextFactory: weblogic.jndi.WLInitialContextFactory
• providerURL: t3://10.0.0.51:7001
• connectionFactory: myTopicFactory
• destination: myTopicName
• username: user
• password: password

Topic - Receive

The Topic - Receive JMS Advanced action is used to receive messages from a subscribed topic. It waits until the specified number of messages are received.

Parameters

• topic (required): The topic name.
• numberOfMessages (optional): The number of message to receive.
• timeout (optional): Timeout (in ms) applied to wait all messages. 0=none.
• writeMessageInResponse (optional): Whether or not the response should contain the messages.
• failOnTimeout (optional): If set to true, the action fails when timeout is reached.

Example

An example of receiving 10 messages from a topic:

• queue: myTopicName
• timeout: 5000
• numberOfMessages: 10
