Update graph boards
The sensitive-context menu of a graph board includes an Update feature.
This feature is used to update each graph present in the graph board, through the substitution of data coming from a test result by another test result.
- Case 1 : All graphs come from data of the same test result
On the graph board, all graphs include data coming from the "Data Scenario 2" test result.
- Select the test result source.
- Select Update on the context-sensitive menu of the graph board.

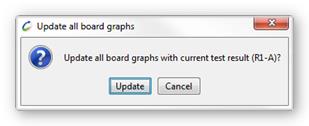

- Accept the update

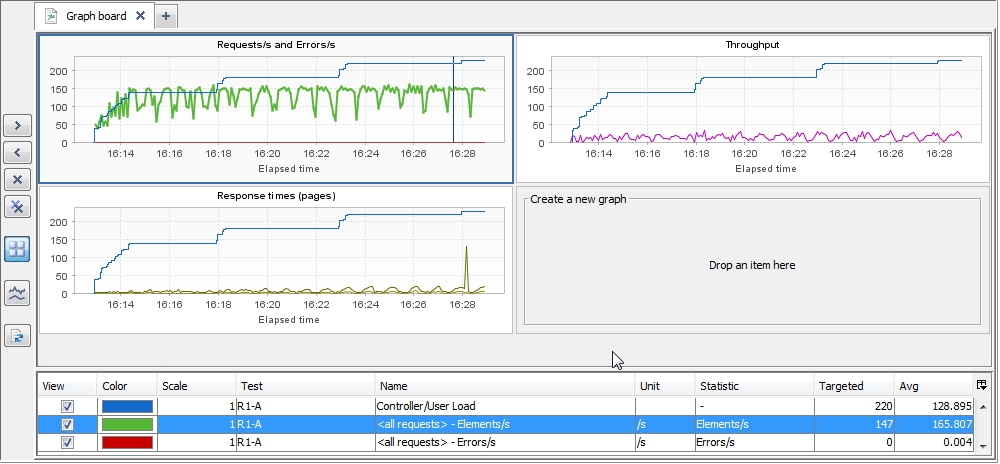

On the graph board, all graphs include data coming from the "R1-A" test result.
- Case 2 : The graphs have different sources of test results

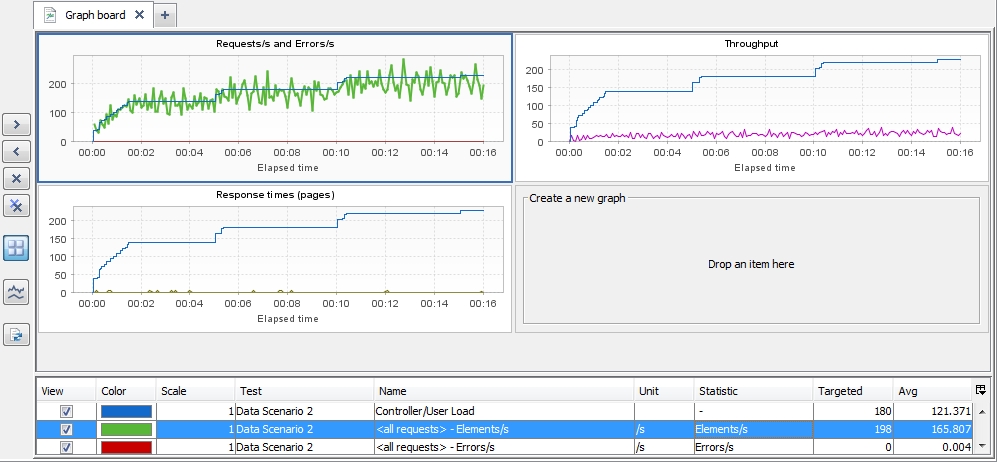

On the graph board, all graphs include data coming from the "R1-A" and "R1-B" test result
- Select the test result source.
- Select which test result must be replaced.
- Accept the update
On the graph board, all graphs include data coming from the "Data Scenario 2" and "R1-B" test result. The data of "R2-A" test result have been replaced by data of "Data Scenario 2" test result.
