Tuning Garbage Collection with the 1.4.2 JVM

Table of Contents

1. Introduction
2. Generations
3. Performance Considerations
4. Measurement
5. Sizing the Generations
6. Total Heap
7. The Young Generation
8. Young Generation Guarantee
9. Types of Collectors
10. When to Use the Throughput Collector
11. The Throughput Collector
12. Adaptive Sizing
13. AggressiveHeap
14. Measurements with the Throughput Collector
15. When to Use the Concurrent Low Pause Collector
16. The Concurrent Low Pause Collector
17. Overhead of Concurrency
18. Young Generation Guarantee
19. Full Collections
20. Floating Garbage
21. Pauses
22. Concurrent Phases
23. Measurements with the Concurrent Collector
24. Parallel Minor Collection Options with the Concurrent Collector
25. When to Use the Incremental Low Pause Collector
26. The Incremental Low Pause Collector
27. Measurements with the Incremental Collector
28. Other Considerations
29. Conclusion
30. Other Documentation
31. Example of Output
32. Frequently Asked Questions

See also:

1. http://java.sun.com/docs/hotspot/gc1.4.2/index.html

1 Introduction

The Java 2 Platform, Standard Edition (J2SE platform) is used for a wide variety of applications from small applets on desktops to web services on large servers. In the J2SE platform version 1.4.1 two new garbage collectors were introduced to make a total of four garbage collectors from which to choose. How should that choice be made and what are the consequences of that choice?

This document will describe some of the general features shared by all the garbage collectors. It will then discuss tuning options to take the best advantage of those features in the context of the default single-threaded, stop-the-world collector. Finally, it will discuss the specific features of the three other collectors, and discuss the criteria for choosing one of the four collectors.

When does garbage collection performance matter to the user? For many applications it doesn't. That is, the application can perform within its specifications in the presence of garbage collection with pauses of modest frequency and duration. An example where this is not the case (when the default collector is used) would be a large application that scales well to large number of threads, processors, sockets, and a large amount of memory.

Amdahl observed that most workloads cannot be perfectly parallelized; some portion is always sequential and does not benefit from parallelism. This is also true for the J2SE platform. In particular, virtual machines for the Java platform up to and including version 1.3.1 do not have parallel garbage collection, so the impact of garbage collection on a multiprocessor system grows relative to an otherwise parallel application.

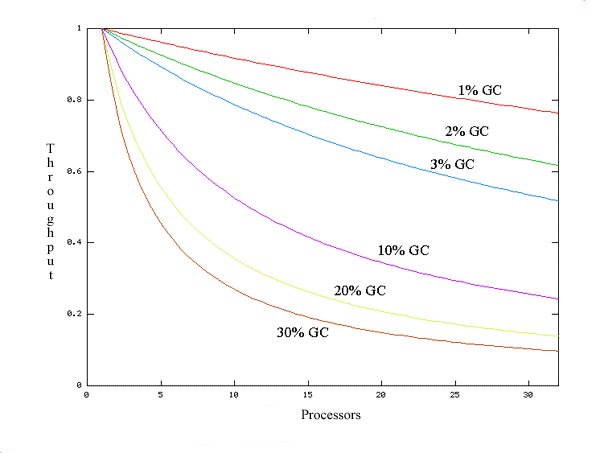

The graph below models an ideal system that is perfectly scalable with the exception of garbage collection. The red line is an application spending only 1% of the time in garbage collection on a uniprocessor system. This translates to more than a 20% loss in throughput on 32 processor systems. At 10% of the time in garbage collection (not considered an outrageous amount of time in garbage collection in uniprocessor applications) more than 75% of throughput is lost when scaling up to 32 processors.

This shows that negligible speed issues when developing on small systems may become principal bottlenecks when scaling up to large systems. However, small improvements in reducing such a bottleneck can produce large gains in performance. For a sufficiently large system it becomes well worthwhile to tune the garbage collector.

The default collector should be the first choice for garbage collection and will be adequate for the majority of applications. Each of the other collectors have some added overhead and/or complexity, which is the price for specialized behavior. If the application doesn't need the specialized behavior of the alternate collectors, use the default collector. The exception to this rule is large applications that are heavily threaded and run on hardware with a large amount of memory and a large number of processors. For such applications, first try the aggressive heap option (-XX:+AggressiveHeap).

This document was written using the J2SE platform, version 1.4.2, on the Solaris Operating Environment (SPARC Platform Edition) as the base platform, because it provides the most scalable hardware and software for the J2SE platform. However, the descriptive text applies to other supported platforms, including Linux, Microsoft Windows, and the Solaris Operating Environment (x86 Platform Edition), to the extent that scalable hardware is available. Although command line options are consistent across platforms, some platforms may have defaults different than those described here.

2 Generations

One strength of the J2SE platform is that it shields the complexity of memory allocation and garbage collection from the developer. However, once garbage collection is the principal bottleneck, it is worth understanding some aspects of this hidden implementation. Garbage collectors make assumptions about the way applications use objects, and these are reflected in tunable parameters that can be adjusted for improved performance without sacrificing the power of the abstraction.

An object is considered garbage when it can no longer be reached from any pointer in the running program. The most straightforward garbage collection algorithms simply iterate over every reachable object. Any objects left over are then considered garbage. The time this approach takes is proportional to the number of live objects, which is prohibitive for large applications maintaining lots of live data.

Beginning with the J2SE platform, version 1.2, the virtual machine incorporated a number of different garbage collection algorithms that are combined using generational collection. While naive garbage collection examines every live object in the heap, generational collection exploits several empirically observed properties of most applications to avoid extra work.

The most important of these observed properties is infant mortality. The blue area in the diagram below is a typical distribution for the lifetimes of objects. The X axis is object lifetimes measured in bytes allocated. The byte count on the Y axis is the total bytes in objects with the corresponding lifetime. The sharp peak at the left represents objects that can be reclaimed (i.e., have "died") shortly after being allocated. Iterator objects, for example, are often alive for the duration of a single loop.

Some objects do live longer, and so the distribution stretches out to the the right. For instance, there are typically some objects allocated at initialization that live until the process exits. Between these two extremes are objects that live for the duration of some intermediate computation, seen here as the lump to the right of the infant mortality peak. Some applications have very different looking distributions, but a surprisingly large number possess this general shape. Efficient collection is made possible by focusing on the fact that a majority of objects "die young".

To optimize for this scenario, memory is managed in generations, or memory pools holding objects of different ages. Garbage collection occurs in each generation when the generation fills up. Objects are allocated in a generation for younger objects or the young generation, and because of infant mortality most objects die there. When the young generation fills up it causes a minor collection. Minor collections can be optimized assuming a high infant mortality rate. The costs of such collections are, to the first order, proportional to the number of live objects being collected. A young generation full of dead objects is collected very quickly. Some surviving objects are moved to an tenured generation. When the tenured generation needs to be collected there is a major collection that is often much slower because it involves all live objects.

The diagram below shows minor collections occurring at intervals long enough to allow many of the objects to die between collections. It is well-tuned in the sense that the young generation is large enough (and thus the period between minor collections long enough) that the minor collection can take advantage of the high infant mortality rate. This situation can be upset by applications with unusual lifetime distributions, or by poorly sized generations that cause collections to occur before objects have had time to die.

The default garbage collector is meant to be used by applications large and small. Its default parameters were designed to be effective for most small applications. The default parameters aren't optimal for many server applications. This leads to the central tenet of this document:

If the garbage collector has become a bottleneck, you may wish to customize the generation sizes. Check the verbose garbage collector output, and then explore the sensitivity of your individual performance metric to the garbage collector parameters.

The default arrangement of generations looks something like this.

At initialization, a maximum address space is virtually reserved but not allocated to physical memory unless it is needed. The complete address space reserved for object memory can be divided into the young and tenured generations.

The young generation consists of eden plus two survivor spaces . Objects are initially allocated in eden. One survivor space is empty at any time, and serves as a destination of the next, copying collection of any live objects in eden and the other survivor space. Objects are copied between survivor spaces in this way until they old enough to be tenured, or copied to the tenured generation.

Other virtual machines, including the production virtual machine for the J2SE platform, version 1.2 for the Solaris Operating Environment, used two equally sized spaces for copying rather than one large eden plus two small spaces. This means the options for sizing the young generation are not directly comparable; see the Performance FAQ for an example.

One portion of the tenured generation called the permanent generation is special because it holds all the reflective data of the virtual machine itself, such as class and method objects.

2.1 Performance Considerations

There are two primary measures of garbage collection performance. Throughputis the percentage of total time not spent in garbage collection, considered over long periods of time. Throughput includes time spent in allocation (but tuning for speed of allocation is generally not needed.) Pauses are the times when an application appears unresponsive because garbage collection is occurring.

Users have different requirements of garbage collection. For example, some consider the right metric for a web server to be throughput, since pauses during garbage collection may be tolerable, or simply obscured by network latencies. However, in an interactive graphics program even short pauses may negatively affect the user experience.

Some users are sensitive to other considerations. Footprint is the working set of a process, measured in pages and cache lines. On systems with limited physical memory or many processes, footprint may dictate scalability. Promptness is the time between when an object becomes dead and when the memory becomes available, an important consideration for distributed systems, including remote method invocation (RMI).

In general, a particular generation sizing chooses a trade-off between these considerations. For example, a very large young generation may maximize throughput, but does so at the expense of footprint, promptness, and pause times. young generation pauses can be minimized by using a small young generation at the expense of throughput. To a first approximation, the sizing of one generation does not affect the collection frequency and pause times for another generation.

There is no one right way to size generations. The best choice is determined by the way the application uses memory as well as user requirements. For this reason the virtual machine's default garbage collectior may not be optimal, and may be overridden by the user in the form of command line options, described below.

2.2 Measurement

Throughput and footprint are best measured using metrics particular to the application. For example, throughput of a web server may be tested using a client load generator, while footprint of the server might be measured on the Solaris Operating Environment using the pmap command. On the other hand, pauses due to garbage collection are easily estimated by inspecting the diagnostic output of the virtual machine itself.

The command line argument -verbose:gc prints information at every collection. Note that the format of the -verbose:gc output is subject to change between releases of the J2SE platform. For example, here is output from a large server application:

[GC 325407K->83000K(776768K), 0.2300771 secs]
  [GC 325816K->83372K(776768K), 0.2454258 secs]
  [Full GC 267628K->83769K(776768K), 1.8479984 secs]

Here we see two minor collections and one major one. The numbers before and after the arrow

325407K->83000K (in the first line)

indicate the combined size of live objects before and after garbage collection, respectively. After minor collections the count includes objects that aren't necessarily alive but can't be reclaimed, either because they are directly alive, or because they are within or referenced from the tenured generation. The number in parenthesis

(776768K)(in the first line)

is the total available space, not counting the space in the permanent generation, which is the total heap minus one of the survivor spaces. The minor collection took about a quarter of a second. 0.2300771 secs (in the first line)

The format for the major collection in the third line is similar. The flag -XX:+PrintGCDetails prints additional information about the collections. The additional information printed with this flag is liable to change with each version of the virtual machine. The additional output with the -XX:+PrintGCDetails flag in particular changes with the needs of the development of the Java Virtual Machine. An example of the output with -XX:+PrintGCDetails for the J2SE platform, version 1.4.2 is shown here.

[GC [DefNew: 64575K->959K(64576K), 0.0457646 secs] 196016K->133633K(261184K), 0.0459067 secs]]

indicates that the minor collection recovered about 98% of the young generation, DefNew: 64575K->959K(64576K)

and took about 46 milliseconds. 0.0457646 secs

The usage of the entire heap was reduced to about 51% 196016K->133633K(261184K)

and that there was some slight additional overhead for the collection (over and above the collection of the young generation) as indicated by the final time: 0.0459067 secs

The flag -XX:+PrintGCTimeStamps will additionally print a time stamp at the start of each collection.

111.042: [GC 111.042: [DefNew: 8128K->8128K(8128K), 0.0000505 secs]111.042: [Tenured: 18154K->2311K(24576K), 0.1290354 secs] 26282K->2311K(32704K), 0.1293306 secs]

The collection starts about 111 seconds into the execution of the application. The minor collection starts at about the same time. Additionally the information is shown for a major collection delineated by Tenured. The tenured generation usage was reduced to about 10% 18154K->2311K(24576K)

and took about .13 seconds. 0.1290354 secs

3 Sizing the Generations

A number of parameters affect generation size. The following diagram illustrates the difference between committed space and virtual space in the heap. At initialization of the virtual machine, the entire space for the heap is reserved. The size of the space reserved can be specified with the -Xmx option. If the value of the -Xms parameter is smaller than the value of the -Xmx parameter, not all of the space that is reserved is immediately committed to the virtual machine. The uncommitted space is labeled "virtual" in this figure. The different parts of the heap ( permanent generation, tenured generation, and young generation) can grow to the limit of the virtual space as needed.

Some of the parameters are ratios of one part of the heap to another. For example the parameter NewRatio denotes the relative size of the tenured generation to the young generation. These parameters are discussed below.

3.1 Total Heap

Since collections occur when generations fill up, throughput is inversely proportional to the amount of memory available. Total available memory is the most important factor affecting garbage collection performance.

By default, the virtual machine grows or shrinks the heap at each collection to try to keep the proportion of free space to live objects at each collection within a specific range. This target range is set as a percentage by the parameters -XX:MinHeapFreeRatio=<minimum> and -XX:MaxHeapFreeRatio=<maximum>, and the total size is bounded below by -Xms and above by -Xmx . The default parameters for the Solaris Operating Environment (SPARC Platform Edition) are shown in this table:

-XX:MinHeapFreeRatio=	40
-XX:MaxHeapFreeRatio=	70
-Xms	3670k
-Xmx	64m

With these parameters if the percent of free space in a generation falls below 40%, the size of the generation will be expanded so as to have 40% of the space free, assuming the size of the generation has not already reached its limit. Similarly, if the percent of free space exceeds 70%, the size of the generation will be shrunk so as to have only 70% of the space free as long as shrinking the generation does not decrease it below the minimum size of the generation.

Large server applications often experience two problems with these defaults. One is slow startup, because the initial heap is small and must be resized over many major collections. A more pressing problem is that the default maximum heap size is unreasonably small for most server applications. The rules of thumb for server applications are:

Unless you have problems with pauses, try granting as much memory as possible to the virtual machine. The default size (64MB) is often too small.

Setting -Xms and -Xmx to the same value increases predictability by removing the most important sizing decision from the virtual machine. On the other hand, the virtual machine can't compensate if you make a poor choice.

Be sure to increase the memory as you increase the number of processors, since allocation can be parallelized.

A description of other virtual machine options can be found at

http://java.sun.com/docs/hotspot/VMOptions.html

The Young Generation

The second most influential knob is the proportion of the heap dedicated to the young generation. The bigger the young generation, the less often minor collections occur. However, for a bounded heap size a larger young generation implies a smaller tenured generation, which will increase the frequency of major collections. The optimal choice depends on the lifetime distribution of the objects allocated by the application.

By default, the young generation size is controlled by NewRatio. For example, setting -XX:NewRatio=3 means that the ratio between the young and tenured generation is 1:3. In other words, the combined size of the eden and survivor spaces will be one fourth of the total heap size.

The parameters NewSize and MaxNewSize bound the young generation size from below and above. Setting these equal to one another fixes the young generation, just as setting -Xms and -Xmx equal fixes the total heap size. This is useful for tuning the young generation at a finer granularity than the integral multiples allowed by NewRatio.

3.2.1 Young Generation Guarantee

In an ideal minor collection the live objects are copied from one part of the young generation (the eden space plus the first survivor space) to another part of the young generation (the second survivor space). However, there is no guarantee that all the live objects will fit into the second survivor space. To ensure that the minor collection can complete even if all the objects are live, enough free memory must be reserved in the tenured generation to accommodate all the live objects. In the worst case, this reserved memory is equal to the size of eden plus the objects in non-empty survivor space. When there isn't enough memory available in the tenured generation for this worst case, a major collection will occur instead. This policy is fine for small applications, because the memory reserved in the tenured generation is typically only virtually committed but not actually used. But for applications needing the largest possible heap, an eden bigger than half the virtually committed size of the heap is useless: only major collections would occur. Note that the young generation guarantee applies to all of the collectors with the exception of the throughput collector . The throughput collector will proceed with a young generation collection, and if the tenured generation cannot accommodate all the promotions from the young generation, both generations are collected.

If desired, the parameter SurvivorRatio can be used to tune the size of the survivor spaces, but this is often not as important for performance. For example, -XX:SurvivorRatio=6 sets the ratio between each survivor space and eden to be 1:6. In other words, each survivor space will be one eighth of the young generation (not one seventh, because there are two survivor spaces).

If survivor spaces are too small, copying collection overflows directly into the tenured generation. If survivor spaces are too large, they will be uselessly empty. At each garbage collection the virtual machine chooses a threshold number of times an object can be copied before it is tenured. This threshold is chosen to keep the survivors half full. An option, -XX:+PrintTenuringDistribution, can be used to show this threshold and the ages of objects in the new generation. It is also useful for observing the lifetime distribution of an application.

Here are the default values for the Solaris Operating Environment (SPARC Platform Edition):

NewRatio	2 (client JVM: 8)
NewSize	2228k
MaxNewSize	unlimited
SurvivorRatio	32

The maximum size of the young generation will be calculated from the maximum size of the total heap and NewRatio. The "unlimited" default value for MaxNewSize means that the calculated value is not limited by MaxNewSize unless a value for MaxNewSize is specified on the command line.

The rules of thumb for server applications are:

First decide the total amount of memory you can afford to give the virtual machine. Then graph your own performance metric against young generation sizes to find the best setting.

Unless you find problems with excessive major collection or pause times, grant plenty of memory to the young generation.

Increasing the young generation becomes counterproductive at half the total heap or less (whenever the young generation guarantee cannot be met).

Be sure to increase the young generation as you increase the number of processors, since allocation can be parallelized.

Types of Collectors

The discussion to this point has been about the default collector. In the J2SE platform, version 1.4.2 there are three additional collectors. Each is a generational collector which has been implemented to emphasize the throughput of the application or low garbage collection pause times.

1. throughput collector:

   Uses a parallel version of the young generation collector. It is used if the -XX:+UseParallelGC option is passed on the command line. The tenured generation collector is the same as the default collector.

2. The concurrent low pause collector:

   Used if the -XX:+UseConcMarkSweepGC is passed on the command line. The concurrent collector is used to collect the tenured generation and does most of the collection concurrently with the execution of the application. The application is paused for short periods during the collection. A parallel version of the young generation copying collector is used with the concurrent collector if the combination -XX:+UseConcMarkSweepGC -XX:+UseParNewGC is passed on the command line.

3. The incremental (sometimes called train) low pause collector:

   Used only if -Xincgc is passed on the command line. By careful bookkeeping, the incremental garbage collector collects just a portion of the tenured generation at each minor collection, trying to spread the large pause of a major collection over many minor collections. However, it is even slower than the default tenured generation collector when considering overall throughput.

Note that -XX:+UseParallelGC should not be used with -XX:+UseConcMarkSweepGC. The argument parsing in the J2SE platform, version 1.4.2 should only allow legal combinations of command line options for garbage collectors, but earlier releases may not detect all illegal combinations and the results for illegal combinations are unpredictable.

Always try the default collector on your application before trying one of the other collectors. Tune the heap size for your application and then consider what requirements of your application are not being met. Based on the latter, consider using one of the other collectors.

When to Use the Throughput Collector

Use the throughput collector when you want to improve the performance of your application with larger numbers of processors. In the default collector garbage collection is done by one thread, and therefore garbage collection adds to the serial execution time of the application. The throughput collector uses multiple threads to execute a minor collection and so reduces the serial execution time of the application. A typical situation is one in which the application has a large number of threads allocating objects. In such an application it is often the case that a large young generation is needed.

4.2 The Throughput Collector

The throughput collector is a generational collector similar to the default collector but with multiple threads used to do the minor collection. The major collections are essentially the same as with the default collector. By default on a host with N CPUs, the throughput collector uses N garbage collector threads in the collection. The number of garbage collector threads can be controlled with a command line option (see below). On a host with 1 CPU the throughput collector will likely not perform as well as the default collector because of the additional overhead for the parallel execution (e.g., synchronization costs). On a host with 2 CPUs the throughput collector generally performs as well as the default garbage collector and a reduction in the minor garbage collector pause times can be expected on hosts with more than 2 CPUs.

The throughput collector can be enabled by using command line flag -XX:+UseParallelGC. The number of garbage collector threads can be controlled with the ParallelGCThreads command line option (-XX:ParallelGCThreads=<desired number>). The size of the heap needed with the throughput collector to first order is the same as with the default collector. Turning on the throughput collector should just make the minor collection pauses shorter. Because there are multiple garbage collector threads participating in the minor collection there is a small possibility of fragmentation due to promotions from the young generation to the tenured generation during the collection. Each garbage collection thread reserves a part of the tenured generation for promotions and the division of the available space into these "promotion buffers" can cause a fragmentation effect. Reducing the number of garbage collector threads will reduce this fragmentation effect as will increasing the size of the tenured generation.

4.2.1 Adaptive Sizing

A feature available with the throughput collector in the J2SE platform, version 1.4.1 and later releases is the use of adaptive sizing (-XX:+UseAdaptiveSizePolicy), which is on by default. Adaptive sizing keeps statistics about garbage collection times, allocation rates, and the free space in the heap after a collection. These statistics are used to make decisions regarding changes to the sizes of the young generation and tenured generation so as to best fit the behavior of the application. Use the command line option -verbose:gc to see the resulting sizes of the heap.

AggressiveHeap

The -XX:+AggressiveHeap option inspects the machine resources (size of memory and number of processors) and attempts to set various parameters to be optimal for long-running, memory allocation-intensive jobs. It was originally intended for machines with large amounts of memory and a large number of CPUs, but in the J2SE platform, version 1.4.1 and later it has shown itself to be useful even on four processor machines. With this option the throughput collector (-XX:+UseParallelGC) is used along with adaptive sizing (-XX:+UseAdaptiveSizePolicy). The physical memory on the machines must be at least 256MB before AggressiveHeap can be used. The size of the initial heap is calculated based on the size of the physical memory and attempts to make maximal use of the physical memory for the heap (i.e., the algorithms attempt to use heaps nearly as large as the total physical memory).

4.2.3 Measurements with the Throughput Collector

The verbose garbage collector output is the same for the throughput collector as with the default collector.

4.3 When to Use the Concurrent Low Pause Collector

Use the concurrent low pause collector if your application would benefit from shorter garbage collector pauses and can afford to share processor resources with the garbage collector when the application is running. Typically applications which have a relatively large set of long-lived data (a large tenured generation), and run on machines with two or more processors tend to benefit from the use of this collector. However, this collector should be considered for any application with a low pause time requirement. Optimal results have been observed for interactive applications with tenured generations of a modest size on a single processor.

4.4 The Concurrent Low Pause Collector

The concurrent low pause collector is a generational collector similar to the default collector. The tenured generation is collected concurrently with this collector.

This collector attempts to reduce the pause times needed to collect the tenured generation. It uses a separate garbage collector thread to do parts of the major collection concurrently with the applications threads. The concurrent collector is enabled with the command line option -XX:+UseConcMarkSweepGC. For each major collection the concurrent collector will pause all the application threads for a brief period at the beginning of the collection and toward the middle of the collection. The second pause tends to be the longer of the two pauses and multiple threads are used to do the collection work during that pause. The remainder of the collection is done with a garbage collector thread that runs concurrently with the application. The minor collections are done in a manner similar to the default collector, and multiple threads can optionally be used to do the minor collection. See "Parallel Minor Collection Options with the Concurrent Collector" below for information on using multiple threads with the concurrent low pause collector.

The techniques used in the concurrent collector (for the collection of the tenured generation) are described at:

http://research.sun.com/techrep/2000/abstract-88.html

4.4.1 Overhead of Concurrency

The concurrent collector trades processor resources (which would otherwise be available to the application) for shorter major collection pause times. The concurrent part of the collection is done by a single garbage collection thread. On an N processor system when the concurrent part of the collection is running, it will be using 1/ Nth of the available processor power. On a uniprocessor machine it would be fortuitous if it provided any advantage. It conceivably could break up a single long pause into several shorter pauses (a pause being defined in this case as the absence of any application threads running) but that is not the intent of the concurrent collector. The concurrent collector also has some additional overhead costs that will take away from the throughput of the applications, and some inherent disadvantages (e.g., fragmentation) for some types of applications. On a two processor machine there is a processor available for applications threads while the concurrent part of the collection is running, so running the concurrent garbage collector thread does not "pause" the application. There may be reduced pause times as intended for the concurrent collector but again less processor resources are available to the application and some slowdown of the application should be expected. As N increases, the reduction in processor resources due to the running of the concurrent garbage collector thread becomes less, and the advantages of the concurrent collector become more.

4.4.2 Young Generation Guarantee

As with the default collector a minor collection may require enough space in the tenured generation to accommodate all the objects in eden and one survivor space. Because fragmentation can occur in a concurrent collection, the requirement for this guarantee is more severe with the concurrent collector. There has to be enough contiguous space available in the tenured generation for all the objects in eden and one survivor space because there is no a priori way (except at a significant performance cost) to know the distribution of the sizes in eden and the one survivor space. A larger heap is almost always needed when the concurrent collector is used as compared to the default collector. As with the default collector the space in the tenured generation must be reserved but does not actually have to be used. As a rough estimate choose the appropriate young generation and tenured generation heap sizes as would be appropriate for the default collector, and then increase the tenured generation size by the equivalent of the young generation size for the concurrent collector. This is a very rough approximation and the correct values are application dependent.

4.4.3 Full Collections

The concurrent collector uses a single garbage collector thread that runs simultaneously with the application threads with the goal of completing the collection of the tenured generation before it becomes full. In normal operation, the concurrent collector is able to do most of its work with the application threads still running, so only brief pauses are seen by the application threads. As a fall back, if the concurrent collector is unable to finish before the tenured generation fills up, the application is paused and the collection is completed with all the application threads stopped. Such collections with the application stopped are referred to as full collections and are a sign that some adjustments need to be made to the concurrent collection parameters.

4.4.4 Floating Garbage

A garbage collector works to find the live objects in the heap. Because application threads and the garbage collector thread run concurrently, objects that are found to be alive by the garbage collector thread may become dead by the time collection finishes. Such objects are referred to as floating garbage. The amount of floating garbage depends on the length of the concurrent collection (more time for the applications threads to discard an object) and on the particulars of the application. As a rough rule of thumb try increasing the size of the tenured generation by 20% to account for the floating garbage. Floating garbage is collected at the next garbage collection.

4.4.5 Pauses

The concurrent collector pauses an application twice during a concurrent collection cycle. The first pause is to mark as live the objects directly reachable from the roots (e.g., objects on thread stack, static objects and so on) and elsewhere in the heap (e.g., the young generation). This first pause is referred to as the initial mark. The second pause comes at the end of the marking phase and finds objects that were missed during the concurrent marking phase due to the concurrent execution of the application threads. The second pause is referred to as the remark.

4.4.6 Concurrent Phases

The concurrent marking occurs between the initial mark and the remark. During the concurrent marking the concurrent garbage collector thread is executing and using processor resources that would otherwise be available to the application. After the remark there is a concurrent sweeping phase which collects the dead objects. During this phase the concurrent garbage collector thread is again taking processor resources from the application. After the sweeping phase the concurrent collector sleeps until the start of the next major collection.

4.4.7 Measurements with the Concurrent Collector

Below is output for -verbose:gc with -XX:+PrintGCDetails (some details have been removed). Note that the output for the concurrent collector is interspersed with the output from the minor collections. Typically many minor collections will occur during a concurrent collection cycle. The CMS-initial-mark: indicates the start of the concurrent collection cycle. The CMS-concurrent-mark: indicates the end of the concurrent marking phase as CMS-concurrent-sweep: marks the end of the concurrent sweeping phase. Not discussed before is the precleaning phase indicated by CMS-concurrent-preclean: which represents work that can be done concurrently and is in preparation for the remark phase CMS-remark. The final phase is indicated by the CMS-concurrent-reset: and is in preparation for the next concurrent collection.

[GC [1
CMS-initial-mark: 13991K(20288K)] 14103K(22400K), 0.0023781 secs]

[GC [DefNew:
2112K->64K(2112K), 0.0837052 secs] 16103K->15476K(22400K),
0.0838519 secs]

...

[GC [DefNew:
2077K->63K(2112K), 0.0126205 secs] 17552K->15855K(22400K),
0.0127482 secs]

[CMS-concurrent-mark:
0.267/0.374 secs]

[GC [DefNew:
2111K->64K(2112K), 0.0190851 secs] 17903K->16154K(22400K),
0.0191903 secs]

[CMS-concurrent-preclean:
0.044/0.064 secs]

[GC[1 CMS-remark:
16090K(20288K)] 17242K(22400K), 0.0210460 secs]

[GC [DefNew:
2112K->63K(2112K), 0.0716116 secs] 18177K->17382K(22400K),
0.0718204 secs]

[GC [DefNew:
2111K->63K(2112K), 0.0830392 secs] 19363K->18757K(22400K),
0.0832943 secs]

...

[GC [DefNew:
2111K->0K(2112K), 0.0035190 secs] 17527K->15479K(22400K),
0.0036052 secs]

[CMS-concurrent-sweep:
0.291/0.662 secs]

[GC [DefNew:
2048K->0K(2112K), 0.0013347 secs] 17527K->15479K(27912K),
0.0014231 secs]

[CMS-concurrent-reset:
0.016/0.016 secs]

[GC [DefNew:
2048K->1K(2112K), 0.0013936 secs] 17527K->15479K(27912K),
0.0014814 secs]

The initial mark pause is typically short relative to the minor collection pause time. The times of the concurrent phases (concurrent mark, concurrent precleaning, and concurrent sweep) may be relatively long (as in the example above) when compared to a minor collection pause but the application is not paused during the concurrent phases. The remark pause is affected by the specifics of the application (e.g., a higher rate of modifying objects can increase this pause) and the time since the last minor collection (i.e., more objects in the young generation may increase this pause).

Parallel Minor Collection Options with the Concurrent Collector

On a multiple processor platform the minor collection pauses can be decreased with the UseParNewGC option. -XX:+UseParNewGC

If the UseParNewGC option is in use the remark pauses may be decreased with the CMSParallelRemarkEnabled option.

-XX:+CMSParallelRemarkEnabled

4.5 When to Use the Incremental Low Pause Collector

Use the incremental low pause collector when your application can afford to trade longer and more frequent young generation garbage collection pauses for shorter tenured generation pauses. A typical situation is one in which a larger tenured generation is required (lots of long-lived objects), a smaller young generation will suffice (most objects are short-lived and don't survive the young generation collection), and only a single processor is available.

4.6 The Incremental Low Pause Collector

The incremental low pause collector is a generational collector similar to the default collector. The minor collections are done with the same young generation collector as the default collector. Do not use either -XX:+UseParallelGC or -XX:+UseParNewGC with this collector. The major collections are done incrementally on the tenured generation.

This collector (also known as the train collector) collects portions of the tenured generation at each minor collection. The goal of the incremental collector is to avoid very long major collection pauses by doing portions of the major collection work at each minor collection. The incremental collector will sometimes find that a non-incremental major collection (as is done in the default collector) is required in order to avoid running out of memory.

This collector can cause some fragmentation of the heap, so sometimes a larger tenured generation heap size will be required, as compared to the default mark-sweep-compact collector.

In order to collect a portion of the tenured generation at each minor collection additional information is maintained by the incremental collector. The overhead of maintaining this information increases the overall cost of garbage collection and throughput is typically less than when using the default mark sweep collector.

The incremental collector should be used by first trying the default collector and sizing the heap as discussed for the default collector. If the major pauses cannot be reduced to an acceptable level by adjusting the sizes of the generations in the heap, try the incremental collector with the same generation sizes first. Then vary the generation sizes to fit your application.

• If full collections are occurring, the incremental collector may not be able to incrementally collect the tenured generation fast enough to finish before the tenured generation runs out of memory. Try decreasing the size of the young generation in order to increase the number of young generation collections

• If full collections are occurring because the young generation guarantee cannot be met, then fragmentation may be the cause. The failure to guarantee a young generation collection is indicated by a young generation collection that does not recover any space (see the example below). Increase the size of the tenured generation to offset the fragmentation. The space in the larger generation may not be used but it will be available for the young generation guarantee.

Measurements with the Incremental Collector

For details on the incremental collector in addition to the -verbose:gc command line flag, add the flag -XX:+PrintGCDetails (which first became available in the J2SE platform, version 1.4.1). A typical line of output with the details flag will look like this.

[GC [DefNew: 2074K->25K(2112K), 0.0050065 secs][Train: 1676K->1633K(63424K), 0.0082112 secs] 3750K->1659K(65536K), 0.0138017 secs]

This line says that a young generation collection was done and took about 5 milliseconds. An incremental collection was done (indicated by the Train: part of the line) and took about 8 milliseconds. If a full collection is done instead of an incremental collection, the line will include Train MSC: which indicates a full (mark-sweep-compact) collection was done.

[GC [DefNew: 2049K->2049K(2112K), 0.0003304 secs][Train MSC: 61809K->357K(63424K), 0.3956982 secs] 63859K->394K(65536K), 0.3987650 secs]

Also in this line you can see that the minor collection was not effective. Before the collection 2049KB of space in the young generation was occupied and after the collection the same amount was occupied. This indicates that the contiguous free space in the tenured generation was not enough to satisfy the young generation guarantee.

Other Considerations

For most applications the permanent generation is not relevant to garbage collector performance. However, some applications dynamically generate and load many classes. For instance, some implementations of JSP pages do this. If necessary, the maximum permanent generation size can be increased with MaxPermSize.

Some applications interact with garbage collection by using finalization and weak/soft/phantom references. These features can create performance artifacts at the Java programming language level. An example of this is relying on finalization to close file descriptors, which makes an external resource (descriptors) dependent on garbage collection promptness. Relying on garbage collection to manage resources other than memory is almost always a bad idea.

Another way applications can interact with garbage collection is by invoking full garbage collections explicitly, such as through the System.gc() call. These calls force major collection, and inhibit scalability on large systems. The performance impact of explicit garbage collections can be measured by disabling explicit garbage collections using the flag -XX:+DisableExplicitGC.

One of the most commonly encountered uses of explicit garbage collection occurs with RMI's distributed garbage collection (DGC). Applications using RMI refer to objects in other virtual machines. Garbage can't be collected in these distributed applications without occasional local collection, so RMI forces periodic full collection. The frequency of these collections can be controlled with properties. For example,

java -Dsun.rmi.dgc.client.gcInterval=3600000
-Dsun.rmi.dgc.server.gcInterval=3600000 ...

specifies explicit collection once per hour instead of the default rate of once per minute. However, this may also cause some objects to take much longer to be reclaimed. These properties can be set as high as Long.MAX_VALUE to make the time between explicit collections effectively infinite, if there is no desire for an upper bound on the timeliness of DGC activity.

The Solaris 8 Operating Environment supports an alternate version of libthread that binds threads to light-weight processes (LWPs) directly. Some applications can benefit greatly from the use of the alternate libthread. This is a potential benefit for any threaded application. To try this, set the environment variable LD_LIBRARY_PATH to include /usr/lib/lwp before launching the virtual machine. The alternate libthread is the default libthread in the Solaris 9 Operating Environment.

Soft references are cleared less aggressively in the server virtual machine than the client. The rate of clearing can be slowed by increasing a parameter in this way: -XX:SoftRefLRUPolicyMSPerMB=10000. The default value is 1000, or one second per megabyte.

6 Conclusion

Garbage collection can become a bottleneck in different applications depending on the requirements of the applications. By understanding the requirements of the application and the garbage collection options, it is possible to minimize the impact of garbage collection.

7 Other Documentation

7.1 Example of Output

The GC output examples document contains examples for different types of garbage collector behavior. The examples show the diagnostic output from the garbage collector and explain how to recognize various problems. Examples from different collectors are included.

7.2 Frequently Asked Questions

A FAQ is included that contains answers to specific questions. The level of detail in the FAQ is generally greater than in this tuning document.

As used on the web site, the terms "Java Virtual Machine" and "JVM" mean a virtual machine for the Java platform.
