Deploy DX Container to Google Kubernetes Engine (GKE)

Learn how to deploy HCL WebSphere Portal (DX) 9.5 CF19 and higher container release along with Ambassador to Kubernetes, as verified in Google Kubernetes Engine (GKE).

Prerequisites

Prior to using the procedure below, it is assumed that the HCL DX Administrator is generally experienced in using Kubernetes. Additionally, the DX Administrator must have the appropriate access to the target environment. If not, following are some preliminary steps that need to be taken.

• The following installed on the system:
  • Docker
  • kubectl
  • Google Cloud SDK

• Setup KUBECONFIG to refer to the target server. This will ensure any kubectl commands executed locally affect the target environment.

• Use kubectl get {pods, pv, storageclass} to get appropriate information from the artifacts running in the target Kubernetes environment.



• Volume requirement:
  • Requires an AccessMode of ReadWriteMany
  • Requires a minimum of 40 GB , with the default request set to 100 GB
  • RECLAIM POLICY = Retain

    Note: HCL WebSphere Portal is input-output (I/O) intensive and requires a high performing file system for optimization.

Follow these steps to deploy HCL WebSphere Portal 9.5 CF19 and higher container release along with Ambassador to Kubernetes, as verified in Google Kubernetes Engine (GKE). This deployment relies heavily on Kubernetes Operators for full functionality.

Note: Reference the latest HCL DX 9.5 Container Release and Update file listings in the Docker deployment topic.

Download containers

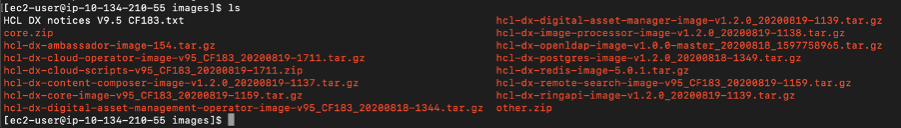

1. Download files to your localDownload and extract the contents of the HCL DX 9.5 CF19 package to the local file system.



2. Change directory

   Open a terminal window and change to the root directory of the extracted package.

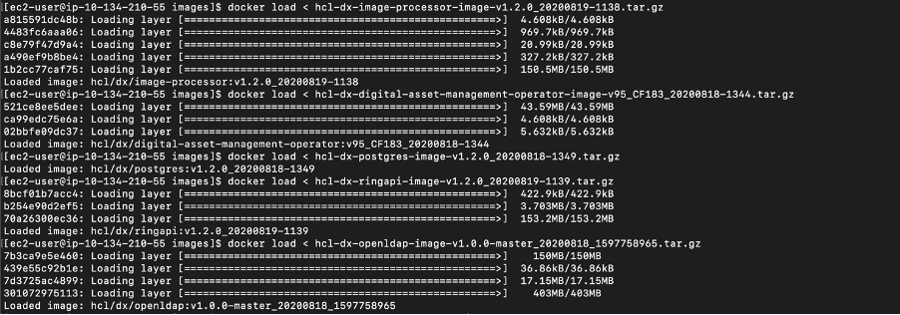

3. Docker loadLoad the containers into your Docker repository:

   • docker load < hcl-dx-core-image-v95_xxxxxxxx-xxxx.tar.gz

   • docker load < hcl-dx-ambassador-image-v95_xxxxxxxx-xxxx.tar.gz

   • docker load -i hcl-dx-cloud-operator-image-v95_xxxxxxxx-xxxx.tar.gz

   • docker load -i hcl-dx-redis-image-xxx.tar.gz

     Note: Either -i or < works for the load command. In case you encounter an error when using one, try running the command using the other.



4. Docker tag and push

   Get the Docker images in your local Docker repository to the target Kubernetes system by tagging and pushing them appropriately. If we used docker load to get your images on the target environment, proceed to the next step.Syntax for tagging:

   docker tag <local image:tag or image id> <destination image:tag>

   Syntax for pushing:

   docker push <image:tag>

Deployment

1. Unzip and extractExtract the HCL DX deployment scripts onto your environment as follows:

   unzip hcl-dx-cloud-scripts-v95_CFxxx_xxxxxxxx-xxxx.zip



2. Change directory

   Change to the extracted files directory, ./hcl-dx-cloud-scripts.

   [root]$ cd  ./ hcl-dx-cloud-scripts

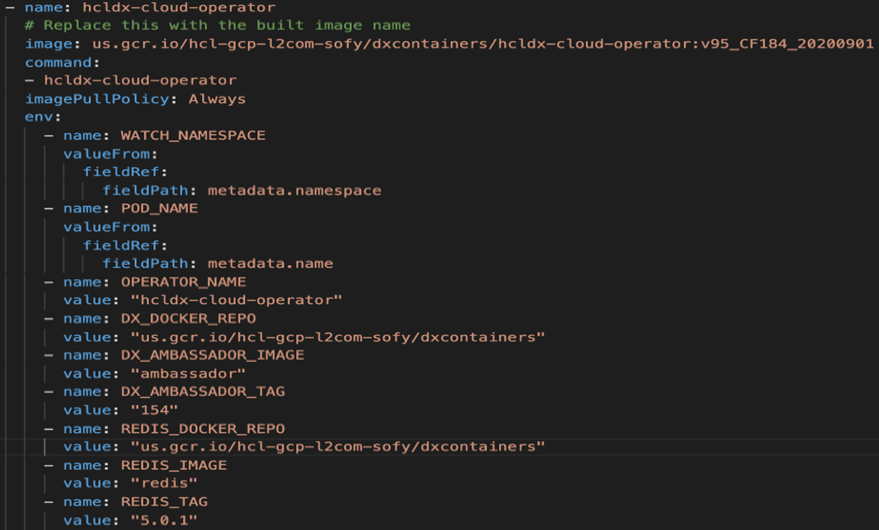

3. Modify deploy/operator.yaml

   Modify deploy/operator.yaml and update the configuration based on your repository image and tag.



   Note: For deployment of DX 9.5 CF_183 and higher, ensure the operator.yaml is updated with names and tags used in your private repository: cloud operator image name, cloud operator tag, Redis repo, Redis image name, and Redis tag.

   • # Replace this with the built image name

     image:REPOSITORY_NAME/cloud-operator:95_184

     ...

   • name:REDIS_DOCKER_REPO
      value: "myrepo.dx.com"

   • name: REDIS_IMAGE
      value: "ambassador-redis"

   • name: REDIS_TAG
      value: "95_184"

4. Custom resource definition

   Install the DxDeployment custom resource definition. Notes:

   • Do not modify the git_v1_dxdeployment_crd.yaml file.
   • Customize the ./deploy/crds/git_v1_dxdeployment_cr.yaml file, if required.

   Use either of the following commands:

   • kubectl create -f hcl-dx-cloud-scripts/deploy/crds/git_v1_dxdeployment_crd.yaml

   • ./scripts/deployCrd.sh

5. Persistence volume

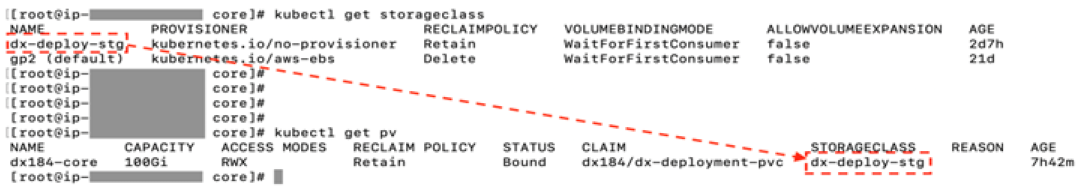

   Create (or have the Kubernetes Administrator create) a persistent volume and storage class where the AccessMode must be ReadWriteMany and the persistent volume reclaim policy must be Retain .



6. Deploy

   Execute the deployDx.sh script to create the namespace, install the project scoped service account, role, role binding, operator, and deployment, run the deployDx.sh script.

   ./scripts/deployDx.sh NAMESPACE REPLICAS REPOSITORY IMAGENAME IMAGETAG VOLUMENAME STORAGECLASS DBTYPE INGRESSIMAGE INGRESSTAG

   • NAMESPACE - the project or the namespace to create or use for deployment. This namespace will be used in subsequent commands.
   • REPLICAS - the number of initial instances for the deployment.
   • REPOSITORY - your local repository, the repository used by Kubernetes.
   • IMAGENAME - the name of the dxCore image, as added to the repository above.
   • IMAGETAG - the tag for the target image as added to the repository above.
   • VOLUMENAME - the volume to be used by the deployment for persistence, this must use AccessMode ReadWriteMany .
   • STORAGECLASS - the storage class name used to create the persistent volume.
   • DBTYPE - the database type. By default, and initially, this is Derby. HCL DX 9.5 uses Apache Derby, Oracle Database, DB2, or Microsoft SQL Server. Acceptable values are derby, oracle, db2, or msSql.
   • INGRESSIMAGE - The image name to use for ambassador (Native K8s).
   • INGRESSTAG - The image tag to use for ambassador (Native K8s)For example:

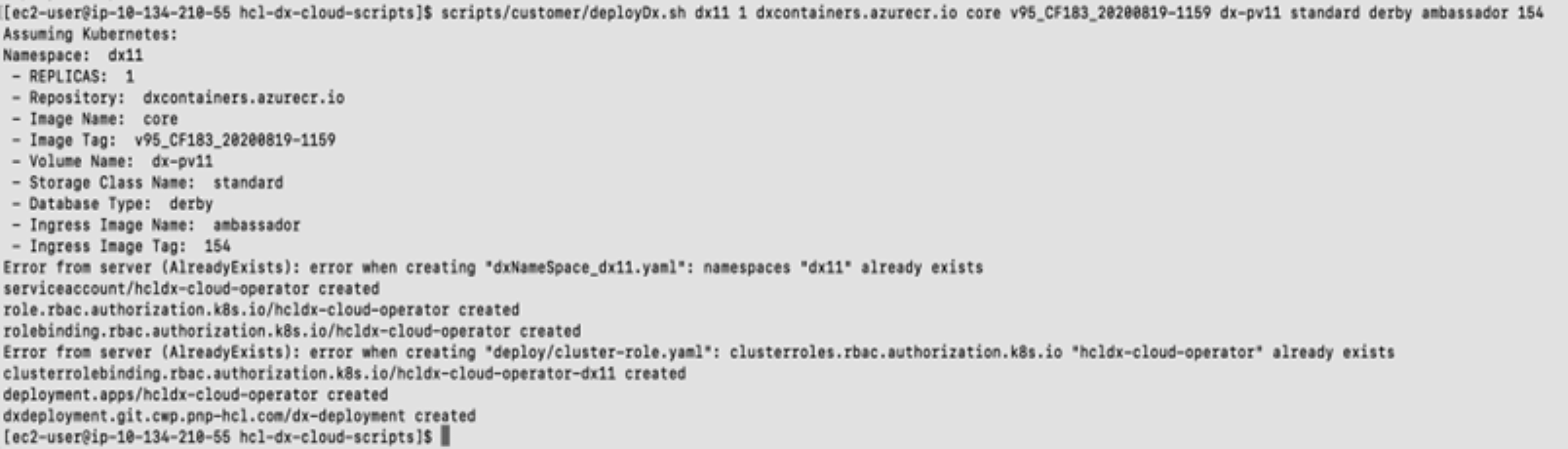

     $  ./scripts/customer/deployDx.sh dx11 1 us.gcr.io/dx-gcp-l2com/dxcontainer dxen v95_CF183_20200819 dx-pv11 standard derby ambassador 154



Generate a TLS Certificate

1. Create a TLS certification to be used by deployment:

   • For development purposes:
     • Use SSL, we can create a private key:

       'openssl genrsa -out my-key.pem 2048'

     • Use OpenSSL, we can create a certificate signed by the private key:

       'openssl req -x509 -key my-key.pem -out my-cert.pem -days 365 -subj '/CN=my-cert'

   • Create a TLS certification:

     $ kubectl create secret tls dx-tls-cert --cert=my-cert.pem --key=my-key.pem -n dx11

     Note: The default name is the dx-tls-cert this can be changed in the configuration. In the example, dx11 is the Kubernetes namespace. We can set your preferred namespace, but we must consistently use this namespace in subsequent commands. See the Customize the Kubernetes deployment topic for more information on customizing your deployment.

Check the deployment status

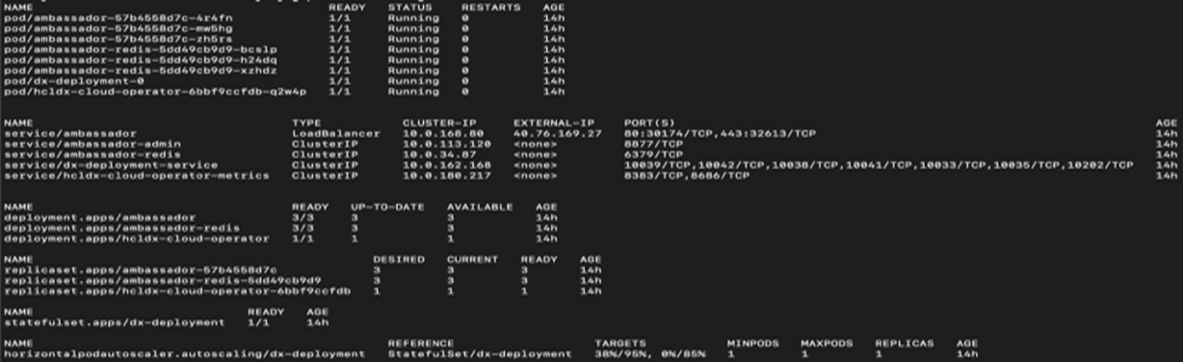

1. Check the status of the deployment. The following command can be used from the external IP from the Google GKE load balancer to access the deployment.

   $ kubectl get all -n <your name space>

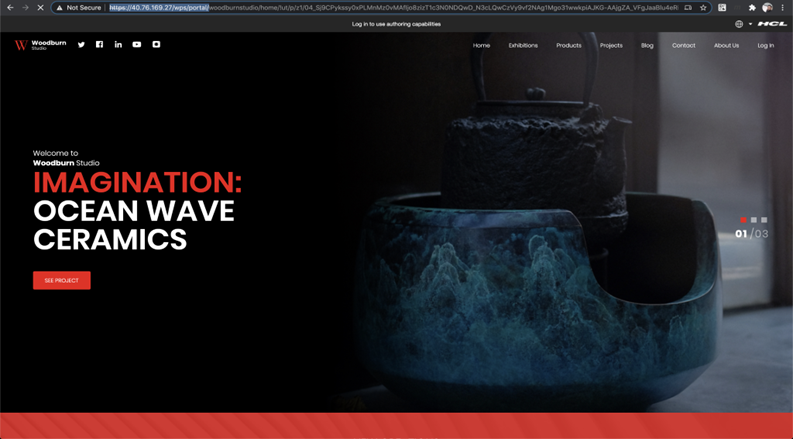

   The deployed system will be available at https://external-ip/wps/portal . For example, https://40.76.169.27/wps/portal/



Install the Experience API, Content Composer, and Digital Asset Management components to GKE

1. Create a config map with the same name as the dx statefulset. By default, the dx statefulset is dx-deployment, as shown in this example:kubectl create configmap dx-deployment -n dx11



2. Edit the configmap, add the following data, and update the values based on your image tags:

   data:
     dx.deploy.openldap.enabled: 'true'
     dx.deploy.openldap.tag: dx-183
     dx.deploy.openldap.image: dx-openldap
     dx.deploy.experienceapi.enabled: 'true'
     dx.deploy.experienceapi.tag: dx-183
     dx.deploy.experienceapi.image: ring-api
     dx.deploy.contentui.enabled: 'true'
     dx.deploy.contentui.tag: dx-183
     dx.deploy.contentui.image: content-ui
     dx.deploy.dam.enabled: 'true'
     dx.deploy.dam.volume: releaseml
     dx.deploy.dam.storageclass: dx-deploy-stg
     dx.deploy.dam.persistence.tag: dx-183
     dx.deploy.dam.persistence.image: persist
     dx.deploy.dam.imgprocessor.tag: dx-183
     dx.deploy.dam.imgprocessor.image: image-processor
     dx.deploy.dam.tag: dx-183
     dx.deploy.dam.image: dam
     dx.deploy.dam.operator.tag: dx-183
     dx.deploy.dam.operator.image: hcl-dam-operator
     dx.deploy.host.override: 'false'


   Note: The Digital Asset Manager container requires one volume (specified in the configmap under dx.deploy.dam.volume). The Digital Asset Manager persistence containers require one self-provisioned volume per pod which by default are set to minimum of 2 minimum and a maximum of 5 pods.You can also create the config map in a YAML file and deploy it with the following instructions (example):

   kubectl create -f my_config_map.yaml -n dx11

   .

3. After creating the config map, deployment will go into 'init' mode, and restart a couple of times after the new options are configured. We can check the status via the command line using the command (example):

   kubectl get pods -n dx11



See the following section for additional information:

• Install Experience API, Content Composer, and Digital Asset Management

Update the HCL WebSphere Portal 9.5 GKE deployment

1. To update the deployment, run the updateDx.sh script with updated values:

   ./scripts/updateDx.sh NAMESPACE REPLICAS REPOSITORY IMAGENAME IMAGETAG VOLUMENAME STORAGECLASS DBTYPE INGRESSIMAGE INGRESSTAG

   • NAMESPACE - the project or the namespace to create or use for deployment.
   • REPLICAS - the number of initial instances for the deployment.
   • REPOSITORY - your local repository, the repository used by Kubernetes.
   • IMAGENAME - the name of the dxCore image, as added to the repository above.
   • IMAGETAG - the tag for the target image as added to the repository above.
   • VOLUMENAME - the volume to be used by the deployment for persistence, this must use AccessMode ReadWriteMany .
   • STORAGECLASS - the storage class name used to create the persistent volume.
   • DBTYPE - the database type. By default, and initially, this is Derby. HCL DX 9.5 uses Apache Derby, Oracle Database, DB2, or Microsoft SQL Server. Acceptable values are derby, oracle, db2, or msSql.
   • INGRESSIMAGE - The image name to use for Ambassador (Native K8s).
   • INGRESSTAG - The image tag to use for Ambassador (Native K8s).For example:

     $ ./scripts/updateDx.sh test-mynamespace 1 REPO_NAME dxen v95_CF183_20200818-1342 dx-pv-11 dx-deploy-stg derby ambassador 154

2. Once the database is transferred, the DBTYPE will need to be updated so we can scale the instances higher. Additionally, once the database is transferred, the number of replicas could be increased.

   See the Customize the Kubernetes deployment topic for more information on customizing your deployment.

Delete the HCL WebSphere Portal 9.5 GKE deployment

1. Remove the entire deployment requires several steps, this is by design.

   • To remove the deployment in a specific namespace, run the removeDx.sh script:

     ./scripts/removeDx.sh NAMESPACE

     • NAMESPACE - the project or the namespace created or used for deployment.

2. To remove a namespace, use any of the following commands:
   • Kubernetes command:

     'kubectl delete -f dxNameSpace_NAMESPACE .yaml'

     where NAMESPACE is the namespace to be removed

3. The persistent volume associated to the deployment needs to be cleaned up by your Administrator. To reuse a persistent volume, see the following steps:

   • Open the persistent volume in a visual editor (vi) using the
     • Kubernetes command:

       kubectl edit pv your_volume

   • Remove the claimRef section:

     claimRef:
        apiVersion: v1
        kind: PersistentVolumeClaim
        name: dx-deploy-pvc
        namespace: your_namespace
        resourceVersion: "488931120"
        uid: ebd58361-0e2a-11ea-b02e-02f8fe687954

   • Ensure you get the 'persistentvolume/your_volume edited' message.

   • You may need to manually remove any data remaining from the previous deployment.

Parent topic: Deployment
