Payments subsystem architecture

The Payments subsystem contains three main parts: Payment rules engine, Payment plug-in controller, and payment plug-ins.

Review the following concepts related to the Payments subsystem:

• Payment methods
• Refund methods
• Payment, refund, and return payment business policies
• Payment instructions
• Payment events and task commands
• Payment actions
• Financial transactions

The Payments subsystem contains three main parts:

Payment rules engine

The Payment rules engine determines which action to take based on the payment instruction, payment method and the payment event.

Payment plug-in controller

The Payment plug-in controller is a component of the Payments subsystem. It determines which plug-in to use (based on the payment method) and which plug-in API method to call (based on the action).

Payment plug-ins

A payment plug-in is a self-contained software component that serves as a proxy for a payment back-end system.

Payment processing flow

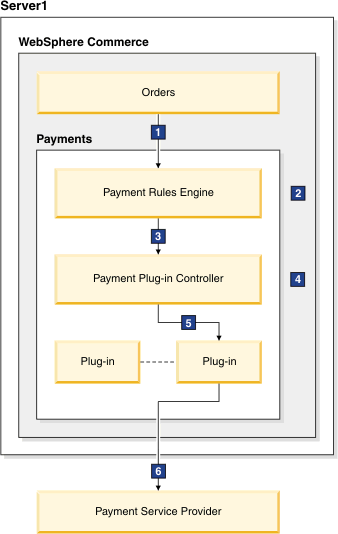

The following diagram shows how a payment is processed by the Payments subsystem.

1. The shopper or CSR completes an order. When the order is submitted, the OrderProcess command runs, then invokes the PrimePayment payment task command.

2. The Payment rules engine determines the payment action that needs to be performed, for example, Approve.

3. The payment action is wrapped into an event, which is passed to the Payment plug-in controller. For example, for the approve action, the Payment plug-in controller API Approve is called.

4. The Payment plug-in controller determines which plug-in to use.

5. The payment action is invoked against the plug-in. For example, for approve action, the API approve of the corresponding plug-in is called.

6. The plug-in interacts with the Payment Service Provider.

7. The plug-in sets the transaction state according to the transaction execution results with the Payment Service Provider. This transaction state will return to the Payment plug-in controller.

8. The Payment plug-in controller updates the payment related records in the database according to the state of transaction execution returned by the plug-in.
