Assigning extension code to extension points
After you develop xC extension code, we must register your extension code within the WebSphere Commerce database and assign extension code to extension points.
Task info

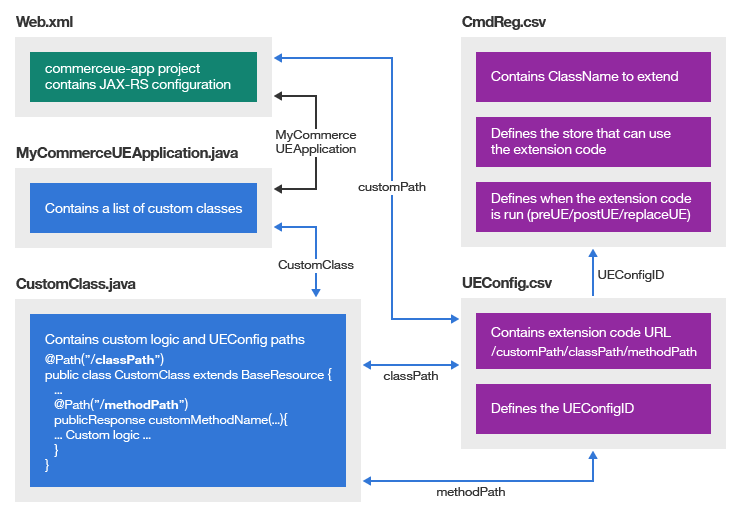

We need to load information to two database tables to assign and register your xC customization; UEConfig and CmdReg.- Load data to the UEConfig table to register your extension code and associate the path of our custom method to a unique UEConfigId.
- Load data to the CmdReg table to assign the UEConfigId (which maps to your extension code) to an extension point (command).
The extension point is registered for the store that is identified in the storeent_id column. To register an extension point for multiple stores, we must include the data for registering the extension for each store on a separate line in the file.
To register and assign extension
code, we can either use SQL to load the data to the database, or we can use the Data Load utility
to load CSV files.
Use SQL
Procedure
- Connect to the database.
- Load data to the UEConfig database table. Modify the following SQL example with your values. This SQL registers your extension code by associating the path of our custom method to a
unique
UEConfigId.
INSERT INTO UECONFIG(UECONFIG_ID,URL,HTTPMETHOD,DESCRIPTION,TIMEOUT,RETRIABLE) VALUES (<UEConfigId>,'Url','HttpMethod','Description',TIMEOUT,RETRIABLE);
- UEConfigId
- (Integer) Required: The unique ID of the xC extension code. You use the UEConfigId when you assign the extension code to an extension point in the CmdReg.csv file.
- Url
- (String) Required: The relative URL of the xC extension resource
method from the context root. You are assigning this URL to the UEConfigId specified
above. For example, in the URL,
https://hostname:9443/commerceue/extension/order/validate_quantity,
enter /extension/order/validate_quantity as the URL value.
- commerceue
- The context root of the Customization server.
- extension
- The base URL of the JAX-RS application.
- order
- The path of the resource class.
- validate_quantity
- The extension point.
Maximum number of characters, 512.
- HttpMethod
- (String) The HTTP request method for the extension. Always set the value to POST.
- Description
- The description of the extension.
Maximum number of characters, 254.
- Properties
- (String) An ampersand (&) separated list of properties in
the form of URL encoded name value pairs. Supported properties include:
- useBridgeClient: Set this property to true if the extension code makes calls to transaction server REST APIs (useBridgeClient=true)
- Content-Type: Set this property to application/json or text/plain. The property is used by the Customization server to locate the matching resource method.
Maximum number of characters, 512.
- FilterId
- (Integer) The FilterId of a filter to use. The FilterId can be null to indicate that filtering is not required. The FilterId is loaded with a Filter.csv file.
- Retriable
- Indicates whether the extension request is retried when the request
fails. Valid values:
- 0
- False
- 1
- True
- Timeout
- (Integer) The amount of time to wait (in milliseconds) for a request before it is considered failed. If null, a default value is used.
- Delete
- (String) Indicates whether to delete the record. Specify 1 to delete the record.
For example,
INSERT INTO UECONFIG(UECONFIG_ID,URL,HTTPMETHOD,DESCRIPTION,REQUESTHANDLER,RESPONSEHANDLER,TIMEOUT,RETRIABLE) VALUES (120570201,'extension/tax/tax_integration_custom','POST','Tax Integration','com.ibm.commerce.order.ue.TaxIntegrationCustomCmdRequestHandler','com.ibm.commerce.order.ue.TaxIntegrationCustomCmdResponseHandler',60000,1);
- Load data to the CmdReg database table. Modify the following SQL example with your values. This SQL assigns the UEConfigId (which maps to your extension code) to an extension point
(command).
INSERT INTO CMDREG(storeent_id, interfacename, description, classname, properties, target) VALUES (Storeent_id, 'InterfaceName', 'Description', 'ClassName', 'Properties', 'target');
- StoreIdentifier
- (String) Required: The unique identifier of the store where we are registering the extension point.
Note:
- To register the command for a particular store, then specify the unique identifier of the store.
- To register the command for all stores, then specify NullEntity.
- Description
- (String) A description of the command.
Maximum number of characters, 254.
- InterfaceName
- (String) Required: The command interface extension point that your extension code is extending.
Maximum number of characters, 254.
- ClassName
- (String) The implementation class for our custom xC extension
from the context root.
Maximum number of characters, 254.
- Properties
- (String) The default properties associated with this command. The
properties are in the "property1=value1&property2=value2" form, where the property is the name of the property, and the value is the value corresponding to the property.Valid properties:
- preExecute
- (Boolean) Indicates whether the extension code runs before the command. The value true indicates that the extension code is to run before the command.
- replaceExecute
- (Boolean) Indicates whether the extension code runs instead of the command. The value true indicates that the extension code is to run instead of the command.
- postExecute
- (Boolean) Indicates whether the extension code runs after the command. The value true indicates that the extension code is to run after the command.
- preUEConfigId, replaceUEConfigId, or postUEConfigId
- When the preExecute, replaceExecute, or postExecute parameters are specified, the corresponding UEConfigId must also be given. The UEConfigId is loaded with a UEConfig.csv file. For more information, see UEConfig object input file definitions.
- restTarget
- Indicates whether the extension calls the remote REST service. Set the value to true (restTarget=true).
Maximum number of characters, 254.
- Delete
- (String) Indicates whether to delete the record. Specify 1 to delete the record.
For example,
INSERT INTO CMDREG(storeent_id, interfacename, description, classname, properties, target) VALUES (0, 'com.ibm.commerce.isv.kit.tax.TaxIntegrationCustomCmd', 'Tax Integration Custom command default implementation', 'com.ibm.commerce.isv.kit.tax.TaxIntegrationCustomCmdImpl', 'replaceUEConfigId=120570201&replaceExecute=true&restTarget=true&retriable=1', 'Local');
- Verify the data loaded.
SELECT * FROM UECONFIG SELECT * FROM CMDREG
Use Data Load utility
Procedure
- Download the following file and extract to the WCDE_installdir/samples/DataLoad/ directory.
Ensure that you now have a WCDE_installdir/samples/DataLoad/xC directory.
- Create a UEConfig_sample.csv file in the WCDE_installdir/samples/DataLoad/xC directory.
Note: We can change the filename to be a unique name.
- Add the following content to your CSV file.
UEConfig,,,,,,, UECONFIG_ID,URL,HTTPMETHOD,DESCRIPTION,TIMEOUT,RETRIABLE
- In the third row, add your values.
- UEConfigId
- (Integer) Required: The unique ID of the xC extension code. You use the UEConfigId when you assign the extension code to an extension point in the CmdReg.csv file.
- Url
- (String) Required: The relative URL of the xC extension resource
method from the context root. You are assigning this URL to the UEConfigId specified
above. For example, in the URL,
https://hostname:9443/commerceue/extension/order/validate_quantity,
enter /extension/order/validate_quantity as the URL value.
- commerceue
- The context root of the Customization server.
- extension
- The base URL of the JAX-RS application.
- order
- The path of the resource class.
- validate_quantity
- The extension point.
Maximum number of characters, 512.
- HttpMethod
- (String) The HTTP request method for the extension. Always set the value to POST.
- Description
- The description of the extension.
Maximum number of characters, 254.
- Properties
- (String) An ampersand (&) separated list of properties in
the form of URL encoded name value pairs. Supported properties include:
- useBridgeClient: Set this property to true if the extension code makes calls to transaction server REST APIs (useBridgeClient=true)
- Content-Type: Set this property to application/json or text/plain. The property is used by the Customization server to locate the matching resource method.
Maximum number of characters, 512.
- FilterId
- (Integer) The FilterId of a filter to use. The FilterId can be null to indicate that filtering is not required. The FilterId is loaded with a Filter.csv file.
- Retriable
- Indicates whether the extension request is retried when the request
fails. Valid values:
- 0
- False
- 1
- True
- Timeout
- (Integer) The amount of time to wait (in milliseconds) for a request before it is considered failed. If null, a default value is used.
- Delete
- (String) Indicates whether to delete the record. Specify 1 to delete the record.
- Create a CmdReg_sample.csv file in the WCDE_installdir/samples/DataLoad/xC directory.
Note: We can change the filename to be a unique name.
- Add the following content to your CSV file.
CmdReg, storeent_id, interfacename, description, classname, properties, target
- In the third row, add your values.
- StoreIdentifier
- (String) Required: The unique identifier of the store where we are registering the extension point.
Note:
- To register the command for a particular store, then specify the unique identifier of the store.
- To register the command for all stores, then specify NullEntity.
- Description
- (String) A description of the command.
Maximum number of characters, 254.
- InterfaceName
- (String) Required: The command interface extension point that your extension code is extending.
Maximum number of characters, 254.
- ClassName
- (String) The implementation class for our custom xC extension
from the context root.
Maximum number of characters, 254.
- Properties
- (String) The default properties associated with this command. The
properties are in the "property1=value1&property2=value2" form, where the property is the name of the property, and the value is the value corresponding to the property.Valid properties:
- preExecute
- (Boolean) Indicates whether the extension code runs before the command. The value true indicates that the extension code is to run before the command.
- replaceExecute
- (Boolean) Indicates whether the extension code runs instead of the command. The value true indicates that the extension code is to run instead of the command.
- postExecute
- (Boolean) Indicates whether the extension code runs after the command. The value true indicates that the extension code is to run after the command.
- preUEConfigId, replaceUEConfigId, or postUEConfigId
- When the preExecute, replaceExecute, or postExecute parameters are specified, the corresponding UEConfigId must also be given. The UEConfigId is loaded with a UEConfig.csv file. For more information, see UEConfig object input file definitions.
- restTarget
- Indicates whether the extension calls the remote REST service. Set the value to true (restTarget=true).
Maximum number of characters, 254.
- Delete
- (String) Indicates whether to delete the record. Specify 1 to delete the record.
- Modify
WCDE_installdir/samples/DataLoad/xC/wc-dataload-cmdreg.xml
to use your CmdReg input file name. For
example,
<_config:LoadOrder commitCount="100" batchSize="1" dataLoadMode="Replace" > <_config:LoadItem name="CMDREG" businessObjectConfigFile="wc-loader-cmdreg.xml" startKey="100000001" endKey="200000000"> <_config:DataSourceLocation location="<your_CmdReg_input.csv>" /> </_config:LoadItem> </_config:LoadOrder>
- Modify
WCDE_installdir/samples/DataLoad/xC/wc-dataload-ueconfig.xml
to use your UEConfig input file name. For
example,
<_config:LoadOrder commitCount="100" batchSize="1" dataLoadMode="Replace" > <_config:LoadItem name="UEConfig" businessObjectConfigFile="wc-loader-ueconfig.xml" startKey="100000001" endKey="200000000"> <_config:DataSourceLocation location="your_UEconfig_input.csv" /> </_config:LoadItem> </_config:LoadOrder> - Modify WCDE_installdir/samples/DataLoad/xC/wc-dataload-env.xml according to the database information.
- Open a command line utility and go to WCDE_installdir/bin.
- Load data into the database.
dataload.bat WCDE_installdir/samples/DataLoad/xC/wc-dataload-cmdreg.xml
dataload.bat WCDE_installdir/samples/DataLoad/xC/wc-dataload-ueconfig.xml
