Cache invalidation using Kafka and ZooKeeper

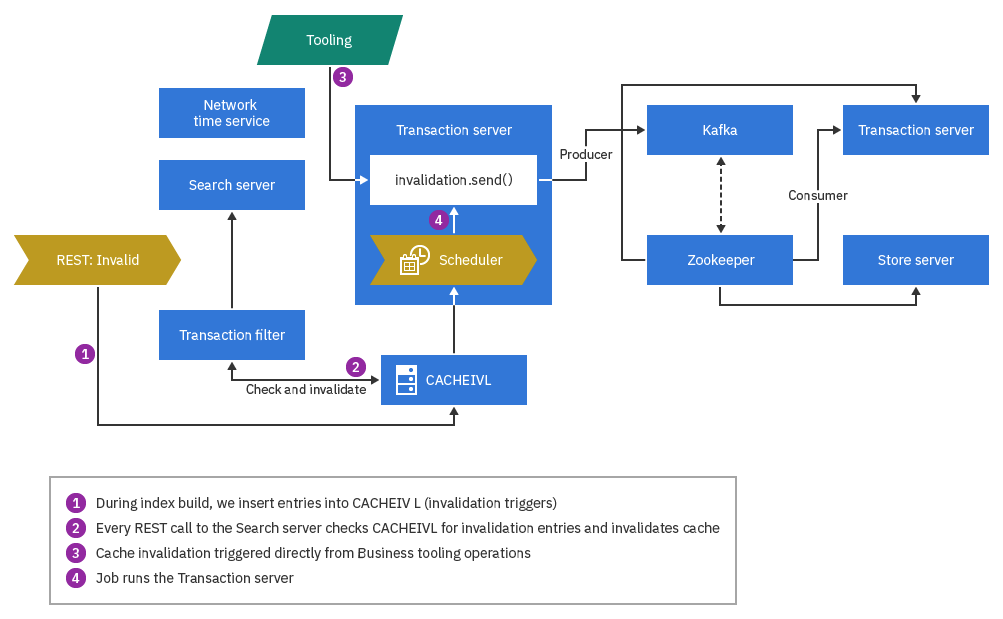

We can use Apache Kafka and Apache ZooKeeper to do cache invalidation. Invalidation jobs can be run either from local or remote servers. We can use Kafka and ZooKeeper to run invalidation between Transaction servers, between a Transaction server and Store servers, or between a Transaction server and Search servers. The general process flow is shown in the following diagram.

Note: We cannot perform remote cache invalidation of xC servers using Kafka and ZooKeeper.

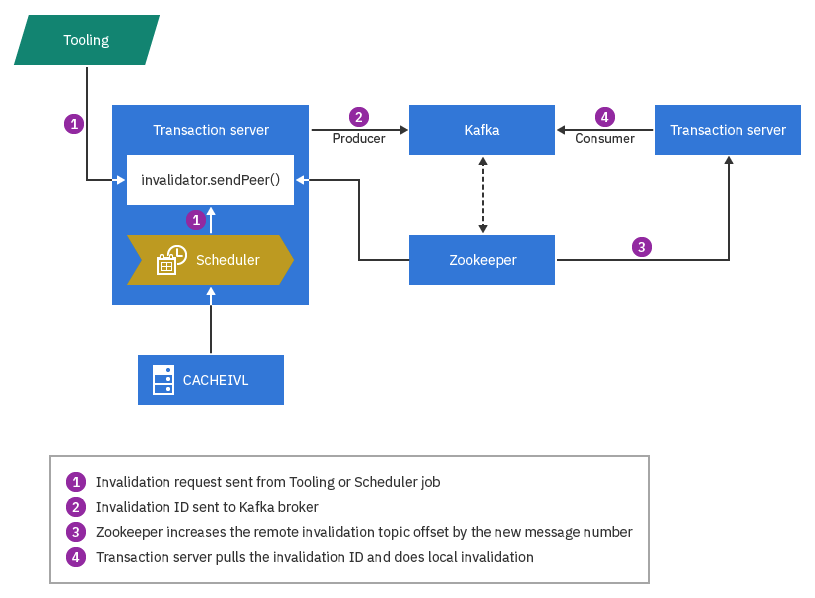

Invalidation between Transaction servers

When you perform Transaction server cache invalidation, one server acts as a message producer, and the other as the consumer. The messages use a predetermined topic naming format, topicnamePeerCacheInvalidation, where topicname is our own Kafka topic name. The producer sends messages to the Kafka broker, which appends them to the topic partitions. For example, if a Business user is updating author data, her Transaction server will send cache invalidation IDs to the Kafka broker when the invalidation transaction is committed. The consumer Transaction server monitors the same topics on the Kafka server, and when it detects message offset changes, it will query the Kafka broker for the invalidation IDs. Then it will do the invalidation using a pre-configured “DB table-Cache container” mapping.

Some events, such as Data Load operations, do not directly trigger invalidation. Instead, database table triggers, index build jobs and other daily jobs place new records in the CACHEIVL table as they are run. The cache invalidation scheduler job scans the CACHEIVL table and picks up the latest changes. It will then perform local cache invalidation and send out invalidation messages to the Kafka broker. As in the previous example, when peer Transaction servers detect the new messages, it will do invalidation by pre-configured “DB table – Cache container” mapping.

Note: This process also sets invalidation for the base cache, which is used by local stores. You do not need to separately configure caching for our local store.

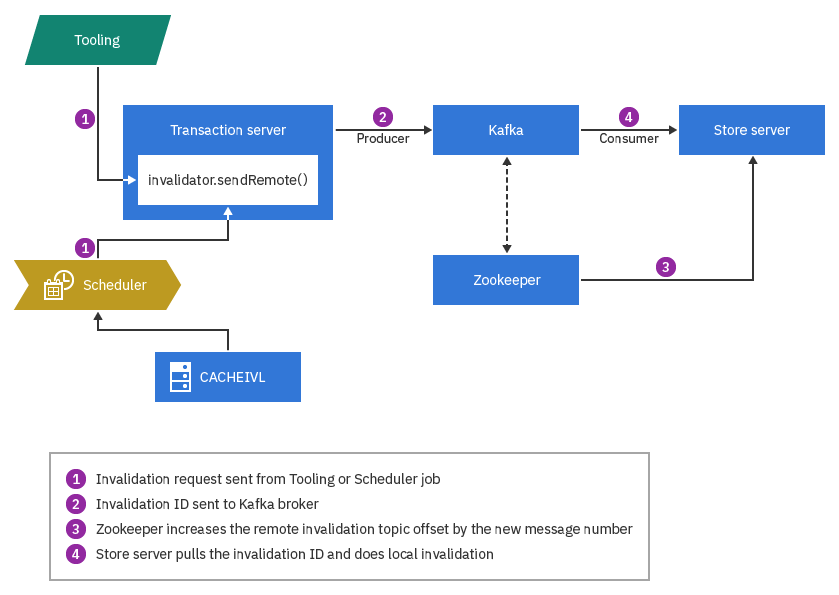

Invalidation between Transaction server and Store server

In this scenario, the Transaction server is the message producer and the remote Store server is the message consumer. The cache invalidation topic in this invalidation scenario is different from that of the Transaction-to-Transaction invalidation scenario. If the same data needs to be invalidated on both Store and and Transaction servers, the same invalidation ID will be appended to both topics. The topic name for the Transaction-to-Store invalidation is structured as topicnameCacheInvalidation. The logic of the invalidation process is the same as in the Transaction-to-Transaction scenario. Only difference is that the sendRemote method of invalidation will be invoked, instead of the sendPeer method.

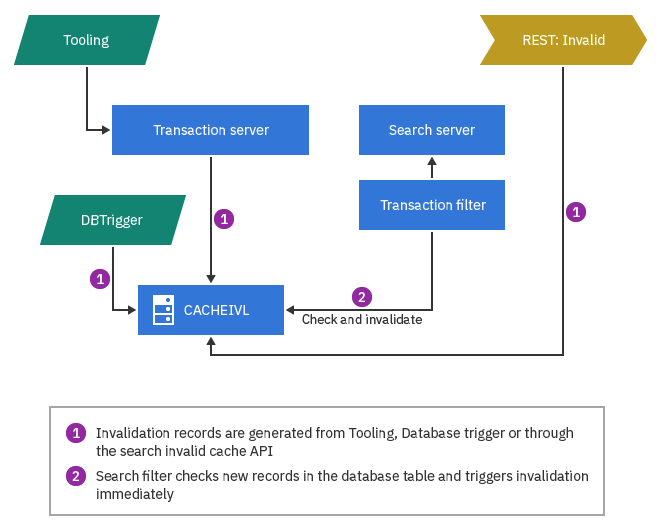

Search server invalidation

The Search server uses CACHEIVL to coordinate cache invalidation. All REST requests that are routed to the Search server go through a servlet filter named TransactionFilter. At preconfigured times, the filter checks for newly inserted CACHEIVL table records. These are selected for invalidation.

Customizable Cache invalidation after search index build

Cache invalidation on the Store server can use custom entries that were added by the Search server during the index build process. In this process, the Search server inserts the custom invalidation records into the CACHEIVL database table during the index build process. The database then sends the records to the Transaction server, which in turn makes invalidation requests to the Store server, where servlet cache invalidation is performed.

We can use the following setting to register the records in CACHEIVL when the invalidation REST API search/admin/resources/index/cache/invalidate is invoked. To set the configuration for cache invalidation after search index build, edit the custom configuration file workspace_dir/search-config-ext/src/runtime/config/com.ibm.commerce.search/wc-component.xml. Add the following properties, save, and exit the file.

<_config:property name="CacheInvalidationForCatalogEntry" value="productId:$catEntryId$,CategoryDisplay:storeId:categoryId:$storeId$:$catGroupId$" />
<_config:property name="CacheInvalidationForCatalogGroup" value="CategoryDisplay:storeId:categoryId:$storeId$:$catGroupId$" />
<_config:property name="CacheInvalidationForStoreHeader"value="StoreHeader:storeId:catalogId:$storeId$:$catalogId$,StoreHeader:storeId:$storeId$" />

• Configure remote cache invalidation
  Using Apache Kafka and Apache ZooKeeper, we can run cache invalidation from the WebSphere Commerce Transaction server, or remotely from a Liberty server. We can enable and customize this feature by editing WebSphere Commerce configuration files.
