Test the customizations

In this lesson, you perform two test cases to verify the customizations performed in this module.

You can test the result of the customized code by:

Verify that search results are displayed correctly in the Management Center user interface
Verify that the search results are consistent with the contents of the database.
Verify the results by viewing the trace

The results are verified using two test cases:

Search using a number as input
Search using a string as input.

Procedure

For the first test case, search using numeric input:

Verify the customized result with the Management Center user interface:
1. Verify the WebSphere Commerce Server is running.
2. In the Web browser, type https://hostname:8000/lobtools .
3. Log on to the Management Center using the category manager user ID you previously registered.
4. From the Management Center menu, select Catalogs to open the Catalogs tool.
5. From the Store list, select Select Store > ConsumerDirect store.
6. From the Find area underneath the store dropdown list, select All Catalog Entries By Warranty, as shown in the following screen capture:
7. Input a number in search text area, for example, "30". Click the Search button.
8. The search results contains one entry with the code FULO-01 and a 30 day warranty.
Verify if the search result is correct in the database. Check the warranty information stored in the database now, to verify if the search is finding the correct result. Run the following SQL:
```
select A.catentry_ID, A.warterm, A.wartype, B.careinstruction, C.partnumber from xwarranty A, xcareinstruction B, catentry C where
A.catentry_ID=B.catentry_ID and A.catentry_ID=c.catentry_ID;
```
FULO-01 is the only item with 30 in the warranty term, warranty type or care instructions. You should see this item displayed in the search.

Examine the trace:

Two traces are used in this tutorial. The BOD request message, generated SQL statement and BOD response message are located in the WCDE_INSTALL \wasprofile\logs\server1\trace.log file. The following samples show parts of the trace.log file:

Request BOD Message:

<_cat:GetCatalogEntry
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:Oagis9="http://www.openapplications.org/oagis/9"
    xmlns:_cat="http://www.ibm.com/xmlns/prod/commerce/9/catalog"
    xmlns:_wcf="http://www.ibm.com/xmlns/prod/commerce/9/foundation"
    versionID="6.0.0.4">
    <Oagis9:ApplicationArea xsi:type="_wcf:ApplicationAreaType">
        <Oagis9:CreationDateTime>
            2008-04-21T11:22:12.922Z
        </Oagis9:CreationDateTime>
        <Oagis9:BODID>
            221ec640-0f52-11dd-bc43-84624806c574
        </Oagis9:BODID>
        <_wcf:BusinessContext>
            <_wcf:ContextData name="storeId">10101</_wcf:ContextData>
            <_wcf:ContextData name="catalogId">10101</_wcf:ContextData>
        </_wcf:BusinessContext>
    </Oagis9:ApplicationArea>
    <_cat:DataArea>
        <Oagis9:Get maxItems="25">
            <Oagis9:Expression expressionLanguage="_wcf:XPath">
                {_wcf.ap=MyCompany_All}/CatalogEntry[(@catalogEntryTypeCode='ProductBean'
                or @catalogEntryTypeCode='BundleBean' or
                @catalogEntryTypeCode='PackageBean' or
                @catalogEntryTypeCode='DynamicKitBean') and search(
                UserData/UserDataField/Warterm='30' or
                contains(UserData/UserDataField/Wartype,'30') or
                contains(Description/Attributes/careinstruction,'30'))]
            </Oagis9:Expression>
        </Oagis9:Get>
    </_cat:DataArea>
</_cat:GetCatalogEntry>

Generated SQL statement:

SELECT DISTINCT CATENTRY.CATENTRY_ID
FROM CATENTRY JOIN STORECENT ON (CATENTRY.CATENTRY_ID = STORECENT.CATENTRY_ID AND STORECENT.STOREENT_ID IN ( ? )) , XCAREINSTRUCTION IBM_1
WHERE CATENTRY.CATENTTYPE_ID IN (?, ?, ?, ?) AND CATENTRY.MARKFORDELETE = 0 AND ( (CATENTRY.CATENTRY_ID=IBM_1.CATENTRY_ID AND (IBM_1.CAREINSTRUCTION LIKE ?)) ) UNION SELECT DISTINCT CATENTRY.CATENTRY_ID FROM CATENTRY JOIN STORECENT ON (CATENTRY.CATENTRY_ID = STORECENT.CATENTRY_ID AND STORECENT.STOREENT_ID IN ( ? )) , XWARRANTY IBM_1 WHERE CATENTRY.CATENTTYPE_ID IN (?, ?, ?, ?) AND CATENTRY.MARKFORDELETE = 0 AND ( (CATENTRY.CATENTRY_ID=IBM_1.CATENTRY_ID AND (IBM_1.WARTERM=? OR IBM_1.WARTYPE LIKE ?)) )

The generated SQL Statement appears in the trace.log file if

com.ibm.commerce.foundation.server.services.dataaccess.queryservice.gen

is enabled. You can find the generated SQL statements by searching on

com.ibm.commerce.foundation.internal.server.services.dataaccess.queryservice.gen.QueryDataComposer buildQuery

A number of search query generation options can be selected by configuration. Different generation modes allow you to fine-tune the performance of the generated queries. For more information, see Parametric Search Support.

Response BOD Message:

<_cat:ShowCatalogEntry
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:Oagis9="http://www.openapplications.org/oagis/9"
    xmlns:_cat="http://www.ibm.com/xmlns/prod/commerce/9/catalog"
    xmlns:_wcf="http://www.ibm.com/xmlns/prod/commerce/9/foundation">
    <Oagis9:ApplicationArea xsi:type="_wcf:ApplicationAreaType">
        <Oagis9:CreationDateTime>
            2008-04-21T10:45:31.672Z
        </Oagis9:CreationDateTime>
        <Oagis9:BODID>
            0212ae20-0f4d-11dd-bc43-84624806c574
        </Oagis9:BODID>
    </Oagis9:ApplicationArea>
    <_cat:DataArea>
        <Oagis9:Show recordSetCompleteIndicator="true"
            recordSetCount="1"
            recordSetReferenceId="017c88a0-0f4d-11dd-bc43-84624806c574:1"
            recordSetStartNumber="0" recordSetTotal="1">
            <Oagis9:OriginalApplicationArea>
                <Oagis9:CreationDateTime>
                    2008-04-21T10:45:26.688Z
                </Oagis9:CreationDateTime>
                <Oagis9:BODID>
                    ff1a2ea0-0f4c-11dd-bc43-84624806c574
                </Oagis9:BODID>
            </Oagis9:OriginalApplicationArea>
        </Oagis9:Show>
        <_cat:CatalogEntry catalogEntryTypeCode="ProductBean"
            sequence="0.0">
            <_cat:CatalogEntryIdentifier>
                <_wcf:UniqueID>10251</_wcf:UniqueID>
                <_wcf:ExternalIdentifier
                    ownerID="7000000000000000101">
                    <_wcf:PartNumber>FULO-01</_wcf:PartNumber>
                </_wcf:ExternalIdentifier>
            </_cat:CatalogEntryIdentifier>
            <_cat:Description language="-1">
                <_cat:Name>White Fabric Roll Arm Chaise</_cat:Name>
                <_cat:Thumbnail>
                    images/catalog/FULO_01_sm.jpg
                </_cat:Thumbnail>
                <_cat:FullImage>
                    images/catalog/FULO_01.jpg
                </_cat:FullImage>
                <_cat:ShortDescription>
                    Plumply padded for the ultimate comfort.
                </_cat:ShortDescription>
                <_cat:LongDescription>
                    Plumply padded for the ultimate comfort. Removable
                    and reversible back cushion lets you adjust your
                    comfort. Measures 39&quot; in width, 34&quot; in
                    depth, and 34&quot; in height. Some assembly
                    required.
                </_cat:LongDescription>
                <_cat:Attributes name="published">1</_cat:Attributes>
                <_cat:Attributes name="available">1</_cat:Attributes>
                <_cat:Attributes name="auxDescription2">
                    images/catalog/FULO_01_sm45.jpg
                </_cat:Attributes>
                <_cat:Attributes name="catentry_id">
                    10251
                </_cat:Attributes>
                <_cat:Attributes name="language_id">-1</_cat:Attributes>
                <_cat:Attributes name="careinstruction">
                    Very limited use an abrasive cleaner or material on
                    any finished product
                </_cat:Attributes>
                <_cat:Attributes name="optcounter">3</_cat:Attributes>
            </_cat:Description>
            <_cat:CatalogEntryAttributes>
                <_cat:Attributes displaySequence="0.0">
                    <_cat:Name>buyable</_cat:Name>
                    <_cat:AttributeDataType>
                        String
                    </_cat:AttributeDataType>
                    <_cat:StringValue>
                        <_cat:Value>1</_cat:Value>
                    </_cat:StringValue>
                </_cat:Attributes>
                <_cat:Attributes displaySequence="0.0">
                    <_cat:Name>state</_cat:Name>
                    <_cat:AttributeDataType>
                        String
                    </_cat:AttributeDataType>
                    <_cat:StringValue>
                        <_cat:Value>1</_cat:Value>
                    </_cat:StringValue>
                </_cat:Attributes>
            </_cat:CatalogEntryAttributes>
            <_cat:ListPrice>
                <_wcf:Price currency="USD">449.99000</_wcf:Price>
                <_wcf:AlternativeCurrencyPrice currency="USD">
                    449.99000
                </_wcf:AlternativeCurrencyPrice>
            </_cat:ListPrice>
            <_cat:ParentCatalogGroupIdentifier>
                <_wcf:UniqueID>10104</_wcf:UniqueID>
                <_wcf:ExternalIdentifier
                    ownerID="7000000000000000101">
                    <_wcf:GroupIdentifier>
                        Lounge Chairs
                    </_wcf:GroupIdentifier>
                </_wcf:ExternalIdentifier>
            </_cat:ParentCatalogGroupIdentifier>
            <_cat:NavigationRelationship displaySequence="0.0"
                type="child-parent">
                <_cat:CatalogGroupReference>
                    <_cat:CatalogGroupIdentifier>
                        <_wcf:UniqueID>10104</_wcf:UniqueID>
                        <_wcf:ExternalIdentifier
                            ownerID="7000000000000000101">
                            <_wcf:GroupIdentifier>
                                Lounge Chairs
                            </_wcf:GroupIdentifier>
                        </_wcf:ExternalIdentifier>
                    </_cat:CatalogGroupIdentifier>
                    <_cat:CatalogIdentifier>
                        <_wcf:UniqueID>10101</_wcf:UniqueID>
                    </_cat:CatalogIdentifier>
                </_cat:CatalogGroupReference>
            </_cat:NavigationRelationship>
            <_cat:NavigationRelationship displaySequence="0.0"
                type="child-parent">
                <_cat:CatalogGroupReference>
                    <_cat:CatalogGroupIdentifier>
                        <_wcf:UniqueID>10104</_wcf:UniqueID>
                        <_wcf:ExternalIdentifier
                            ownerID="7000000000000000101">
                            <_wcf:GroupIdentifier>
                                Lounge Chairs
                            </_wcf:GroupIdentifier>
                        </_wcf:ExternalIdentifier>
                    </_cat:CatalogGroupIdentifier>
                    <_cat:CatalogIdentifier>
                        <_wcf:UniqueID>10101</_wcf:UniqueID>
                    </_cat:CatalogIdentifier>
                </_cat:CatalogGroupReference>
            </_cat:NavigationRelationship>
            <_cat:FulfillmentProperties>
                <_wcf:UserData />
            </_cat:FulfillmentProperties>
            <_wcf:UserData>
                <_wcf:UserDataField name="catentry_id">
                    10251
                </_wcf:UserDataField>
                <_wcf:UserDataField name="warterm">
                    30
                </_wcf:UserDataField>
                <_wcf:UserDataField name="wartype">
                    COMPREHENSIVE
                </_wcf:UserDataField>
                <_wcf:UserDataField name="optcounter">
                    3
                </_wcf:UserDataField>
            </_wcf:UserData>
        </_cat:CatalogEntry>
    </_cat:DataArea>
</_cat:ShowCatalogEntry>

For this second test case, you search using a string as input:

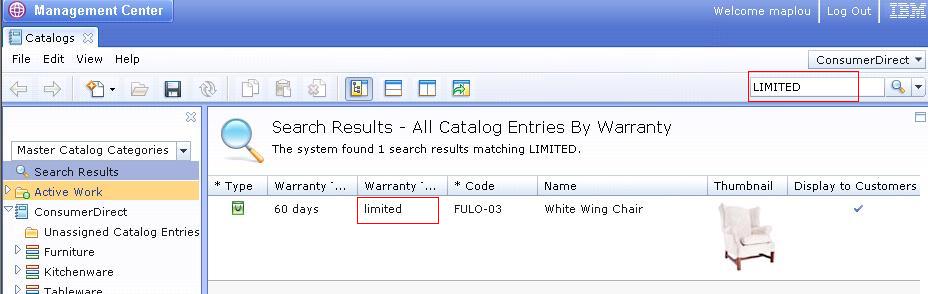

Input a string in the search text area, for example, "LIMITED". Click the search button. The search result is returned back in the Search Results list view, as shown in the following screen capture:

As shown, there is one search result: FULO-03.

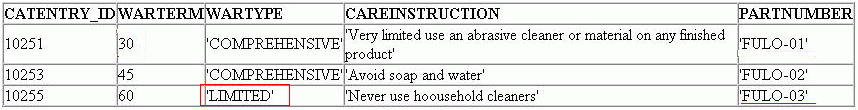

Verify that the results are consistent with the data in the database. Check the warranty information stored in the database, to verify if the search is finding the correct results. Run the following SQL:
```
 select A.catentry_ID, A.warterm, A.wartype, B.careinstruction, C.partnumber from xwarranty A, xcareinstruction B, catentry C where A.catentry_ID=B.catentry_ID and A.catentry_ID=c.catentry_ID;
```

Examine the trace:

Request BOD Message:

<_cat:GetCatalogEntry
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:Oagis9="http://www.openapplications.org/oagis/9"
    xmlns:_cat="http://www.ibm.com/xmlns/prod/commerce/9/catalog"
    xmlns:_wcf="http://www.ibm.com/xmlns/prod/commerce/9/foundation"
    versionID="6.0.0.4">
    <Oagis9:ApplicationArea xsi:type="_wcf:ApplicationAreaType">
        <Oagis9:CreationDateTime>
            2008-04-21T11:08:59.016Z
        </Oagis9:CreationDateTime>
        <Oagis9:BODID>
            48ea5520-0f50-11dd-bc43-84624806c574
        </Oagis9:BODID>
        <_wcf:BusinessContext>
            <_wcf:ContextData name="storeId">10101</_wcf:ContextData>
            <_wcf:ContextData name="catalogId">10101</_wcf:ContextData>
        </_wcf:BusinessContext>
    </Oagis9:ApplicationArea>
    <_cat:DataArea>
        <Oagis9:Get maxItems="25">
            <Oagis9:Expression expressionLanguage="_wcf:XPath">
                {
                _wcf.ap=MyCompany_All}/CatalogEntry[(@catalogEntryTypeCode='ProductBean'
                or @catalogEntryTypeCode='BundleBean' or
                @catalogEntryTypeCode='PackageBean' or
                @catalogEntryTypeCode='DynamicKitBean') and search(
                contains(UserData/UserDataField/Wartype,'LIMITED') or
                contains(Description/Attributes/careinstruction,'LIMITED'))]
            </Oagis9:Expression>
        </Oagis9:Get>
    </_cat:DataArea>
</_cat:GetCatalogEntry>

Generated SQL statement:

SELECT DISTINCT CATENTRY.CATENTRY_ID
FROM CATENTRY JOIN STORECENT ON (CATENTRY.CATENTRY_ID = STORECENT.CATENTRY_ID AND STORECENT.STOREENT_ID IN ( ? )) , XCAREINSTRUCTION IBM_1
WHERE CATENTRY.CATENTTYPE_ID IN (?, ?, ?, ?) AND CATENTRY.MARKFORDELETE = 0 AND ( (CATENTRY.CATENTRY_ID=IBM_1.CATENTRY_ID AND (IBM_1.CAREINSTRUCTION LIKE ?)) ) UNION SELECT DISTINCT CATENTRY.CATENTRY_ID FROM CATENTRY JOIN STORECENT ON (CATENTRY.CATENTRY_ID = STORECENT.CATENTRY_ID AND STORECENT.STOREENT_ID IN ( ? )) , XWARRANTY IBM_1 WHERE CATENTRY.CATENTTYPE_ID IN (?, ?, ?, ?) AND CATENTRY.MARKFORDELETE = 0 AND ( (CATENTRY.CATENTRY_ID=IBM_1.CATENTRY_ID AND (IBM_1.WARTYPE LIKE ?)) )

Response BOD Message:

<_cat:ShowCatalogEntry
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:Oagis9="http://www.openapplications.org/oagis/9"
    xmlns:_cat="http://www.ibm.com/xmlns/prod/commerce/9/catalog"
    xmlns:_wcf="http://www.ibm.com/xmlns/prod/commerce/9/foundation">
    <Oagis9:ApplicationArea xsi:type="_wcf:ApplicationAreaType">
        <Oagis9:CreationDateTime>
            2008-04-21T11:08:59.609Z
        </Oagis9:CreationDateTime>
        <Oagis9:BODID>
            4944d130-0f50-11dd-bc43-84624806c574
        </Oagis9:BODID>
    </Oagis9:ApplicationArea>
    <_cat:DataArea>
        <Oagis9:Show recordSetCompleteIndicator="true"
            recordSetCount="1"
            recordSetReferenceId="49428740-0f50-11dd-bc43-84624806c574:1"
            recordSetStartNumber="0" recordSetTotal="1">
            <Oagis9:OriginalApplicationArea>
                <Oagis9:CreationDateTime>
                    2008-04-21T11:08:59.016Z
                </Oagis9:CreationDateTime>
                <Oagis9:BODID>
                    48ea5520-0f50-11dd-bc43-84624806c574
                </Oagis9:BODID>
            </Oagis9:OriginalApplicationArea>
        </Oagis9:Show>
        <_cat:CatalogEntry catalogEntryTypeCode="ProductBean"
            sequence="4.0">
            <_cat:CatalogEntryIdentifier>
                <_wcf:UniqueID>10255</_wcf:UniqueID>
                <_wcf:ExternalIdentifier
                    ownerID="7000000000000000101">
                    <_wcf:PartNumber>FULO-03</_wcf:PartNumber>
                </_wcf:ExternalIdentifier>
            </_cat:CatalogEntryIdentifier>
            <_cat:Description language="-1">
                <_cat:Name>White Wing Chair</_cat:Name>
                <_cat:Thumbnail>
                    images/catalog/FULO_03_sm.jpg
                </_cat:Thumbnail>
                <_cat:FullImage>
                    images/catalog/FULO_03.jpg
                </_cat:FullImage>
                <_cat:ShortDescription>
                    Wing chair to complement any decor.
                </_cat:ShortDescription>
                <_cat:LongDescription>
                    Wing chair to complement any decor. White fabric
                    wing armchair with mahogany-wood legs. Measures
                    39&quot; in width, 33&quot; in depth, and 42&quot;
                    in height. Some assembly required.
                </_cat:LongDescription>
                <_cat:Attributes name="published">1</_cat:Attributes>
                <_cat:Attributes name="available">1</_cat:Attributes>
                <_cat:Attributes name="auxDescription2">
                    images/catalog/FULO_03_sm45.jpg
                </_cat:Attributes>
                <_cat:Attributes name="catentry_id">
                    10255
                </_cat:Attributes>
                <_cat:Attributes name="language_id">-1</_cat:Attributes>
                <_cat:Attributes name="careinstruction">
                    Never use hoousehold cleaners
                </_cat:Attributes>
            </_cat:Description>
            <_cat:CatalogEntryAttributes>
                <_cat:Attributes displaySequence="0.0">
                    <_cat:Name>buyable</_cat:Name>
                    <_cat:AttributeDataType>
                        String
                    </_cat:AttributeDataType>
                    <_cat:StringValue>
                        <_cat:Value>1</_cat:Value>
                    </_cat:StringValue>
                </_cat:Attributes>
                <_cat:Attributes displaySequence="0.0">
                    <_cat:Name>state</_cat:Name>
                    <_cat:AttributeDataType>
                        String
                    </_cat:AttributeDataType>
                    <_cat:StringValue>
                        <_cat:Value>1</_cat:Value>
                    </_cat:StringValue>
                </_cat:Attributes>
            </_cat:CatalogEntryAttributes>
            <_cat:ListPrice>
                <_wcf:Price currency="USD">499.99000</_wcf:Price>
                <_wcf:AlternativeCurrencyPrice currency="USD">
                    499.99000
                </_wcf:AlternativeCurrencyPrice>
            </_cat:ListPrice>
            <_cat:ParentCatalogGroupIdentifier>
                <_wcf:UniqueID>10104</_wcf:UniqueID>
                <_wcf:ExternalIdentifier
                    ownerID="7000000000000000101">
                    <_wcf:GroupIdentifier>
                        Lounge Chairs
                    </_wcf:GroupIdentifier>
                </_wcf:ExternalIdentifier>
            </_cat:ParentCatalogGroupIdentifier>
            <_cat:NavigationRelationship displaySequence="4.0"
                type="child-parent">
                <_cat:CatalogGroupReference>
                    <_cat:CatalogGroupIdentifier>
                        <_wcf:UniqueID>10104</_wcf:UniqueID>
                        <_wcf:ExternalIdentifier
                            ownerID="7000000000000000101">
                            <_wcf:GroupIdentifier>
                                Lounge Chairs
                            </_wcf:GroupIdentifier>
                        </_wcf:ExternalIdentifier>
                    </_cat:CatalogGroupIdentifier>
                    <_cat:CatalogIdentifier>
                        <_wcf:UniqueID>10101</_wcf:UniqueID>
                    </_cat:CatalogIdentifier>
                </_cat:CatalogGroupReference>
            </_cat:NavigationRelationship>
            <_cat:NavigationRelationship displaySequence="4.0"
                type="child-parent">
                <_cat:CatalogGroupReference>
                    <_cat:CatalogGroupIdentifier>
                        <_wcf:UniqueID>10104</_wcf:UniqueID>
                        <_wcf:ExternalIdentifier
                            ownerID="7000000000000000101">
                            <_wcf:GroupIdentifier>
                                Lounge Chairs
                            </_wcf:GroupIdentifier>
                        </_wcf:ExternalIdentifier>
                    </_cat:CatalogGroupIdentifier>
                    <_cat:CatalogIdentifier>
                        <_wcf:UniqueID>10101</_wcf:UniqueID>
                    </_cat:CatalogIdentifier>
                </_cat:CatalogGroupReference>
            </_cat:NavigationRelationship>
            <_cat:FulfillmentProperties>
                <_wcf:UserData />
            </_cat:FulfillmentProperties>
            <_wcf:UserData>
                <_wcf:UserDataField name="catentry_id">
                    10255
                </_wcf:UserDataField>
                <_wcf:UserDataField name="warterm">
                    60
                </_wcf:UserDataField>
                <_wcf:UserDataField name="wartype">
                    LIMITED
                </_wcf:UserDataField>
            </_wcf:UserData>
        </_cat:CatalogEntry>
    </_cat:DataArea>
</_cat:ShowCatalogEntry>

< Previous | Next >
