Reference > Shop flow URLs > Catalog subsystem URLs > Catalog groups
CatGroupRelDelete URL
This URL deletes a relationship between a parent catalog group and a child catalog group.

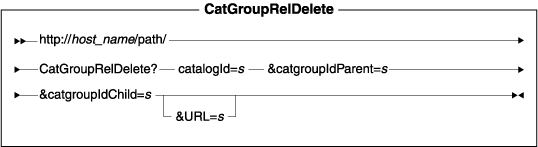

URL structure
- http:// host_name/path/
- The fully qualified name of the WebSphere Commerce Server and the configuration path.
name-value pair with the &
character. For a detailed description of the parameters and their values, see the list entitled Parameter values." />
Parameter values
- catalogId
- Required: The reference number of the catalog.
- catgroupIdParent
- Required: The reference number of the source catalog group.
- catgroupIdChild
- Required: The reference number of the target catalog group.
- URL
- The URL to be called when the command completes successfully.
Example 1
The following example deletes the catalog group relationship with catalog 6000, parent catalog group 10025, and child catalog group 10026:
http://host_name/webapp/wcs/stores/servlet/CatGroupRelDelete? catalogId=6000&catgroupIdParent=10025&catgroupIdChild=10026 &rule=hello&seq=1&URL=LogonForm
Example 2
The following example deletes all the catalog group relationships with catalog 6000 and parent catalog group 6000:
http://host_name/webapp/wcs/stores/servlet/CatGroupRelDelete? catalogId=6000&catgroupIdParent=6000&catgroupIdChild=* &URL=LogonForm
Example 3
The following example deletes all the catalog group relationships with catalog 6000 and child catalog group 6001:
http://host_name/webapp/wcs/stores/servlet/CatGroupRelDelete? catalogId=6000&catgroupIdParent=*&catgroupIdChild=6001 &URL=LogonForm
Behavior
- If the parent catalog group is generic (catgroupIdParent=*), then delete
all CatGroup relationships with the specified child catalog group.
- If the child catalog group is generic (catgroupIdChild=*), then delete all CatGroup relationships with the specified parent catalog group.
Exception conditions
None.
