Membership hierarchy

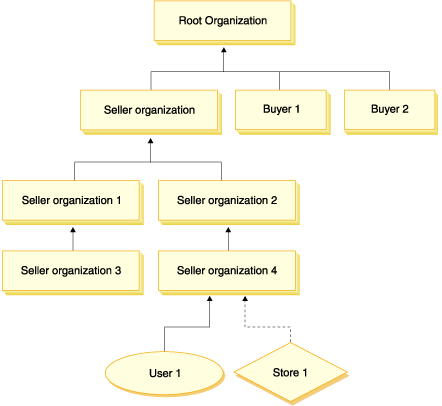

Users and organizational entities within the Member subsystem are organized into a hierarchy. Generally this hierarchy mimics a typical organizational hierarchy, with entries for organizations and organizational units, and entries for users in the leaf nodes. The hierarchy includes artificial organizational entities created specifically to support access control.The following diagram shows a sample membership hierarchy:
The entries in the hierarchy are as follows:
- Root Organization
- The Root Organization is at the top level of the organization and is its own parent. All organizations in WebSphere Commerce organization structure are descendents of the Root Organization. The Root Organization owns site level access control policy groups and their associated policies, and is automatically assigned all roles included in the WebSphere Commerce product. The MEMBER_ID value for the Root Organization is -2001. This value should not be changed.
- Default Organization
- Under the root is the Default Organization, and organizational entities
that represent the seller and buyer organizations in the WebSphere Commerce
system. When a user registers and does not identify an organizational entity
to which the user belongs, the Default Organization will be used. All guest
customers and customers in consumer direct businesses are created under the Default Organization. IBM recommends that when a business user (with profile type B) registers that the business user identify the appropriate organizational entity that he belongs to instead of defaulting to the Default Organization. The parent member of a user is the immediate organizational entity to which the user belongs. A user can specify his parent organizational entity during registration. If he does not specify his parent organizational entity, the Default Organization will be used the parent. The MEMBER_ID value for the Default Organization is -2000. This value should not be changed. - Sub-organizational entities
- One or more other levels of organizational entities can exist beneath the parent organizational entities. An administrator can add as many child organizational entities as necessary to support their business.
- Users
- Each organizational entity can have multiple users. Each user can belong to only one organizational entity.
-
When you create a WebSphere Commerce
user, you create do so by creating a profile for the user, using the Organization
Administration Console. In this case, users are created as part of the Seller
Organization, whereas users that register without identifying an organizational
entity to which they belong, the Default Organization is used. Guest customers
are also created under the Default Organization.
When you create WebSphere Commerce users or customers,
you can create them under an organization of your choice. Guest customers
are automatically created under the Default Organization. Registered users
can be classified according to their profile type: profile type B denotes
a business user (or a B2B direct or B2B indirect customer) and profile type
of C denotes a retail user (or a consumer direct customer). IBM recommends
that business users belong to their appropriate organizational entity in the
membership hierarchy instead of the Default Organization; that is, when a
business user registers, the organizational entity that the user belongs to
should be specified, otherwise WebSphere Commerce will default to using the
Default Organization.
an organizational entity is typically an organization, such as "IBM", whereas an organizational unit is within an organization, such as "Electronic Commerce Division".
The MBRREL table stores membership hierarchy information, and must be populated for every user and organizational entity. The MBRREL table only contains entries for registered users. Guest customers always have the Default Organization as their parent organizational entity. The members that are above a user or organizational entity in the membership hierarchy are referred to as the ancestors of that user or organizational entity. The immediate ancestor is also referred to as the parent. The relationship of the user to its parent organizations is defined in the MBRREL table and also mirrored in the DN for the user.
