Rule server configuration data model

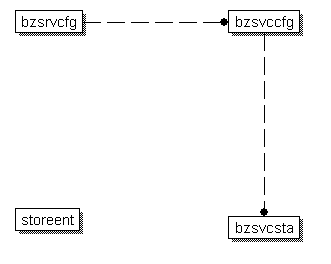

This diagram describes the relationships among tables that contain information used to configure rule servers. Each rule server configuration contains a set of rule service configurations, meaning that those rule services belong to that rule server. The rule service status table contains operational data describing the status of each rule service, as last reported by each commerce server application clone.
Click on any of the database table boxes to see more information about that table.
