WSIF architecture
A diagram depicting the Web Services Invocation Framework (WSIF) architecture, and a description of each of the major components of the architecture.

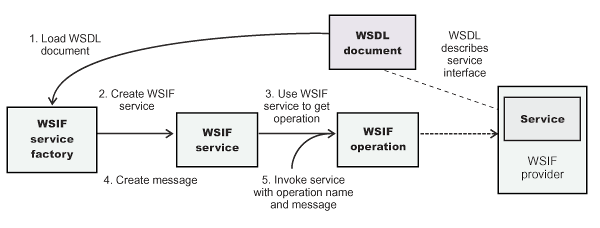

The Web Services Invocation Framework (WSIF) architecture is shown in the figure.
The components of this architecture include:
- WSDL document
- The WSDL document contains the location of the web service. The binding document defines the protocol and format for operations and messages defined by a particular portType.
- WSIF service
- The WSIFService interface is responsible for generating an instance of the WSIFOperation interface to use for a particular invocation of a service operation.
- WSIF operation
- The runtime representation of an operation, called WSIFOperation is responsible for invoking a service based on a particular binding.
- WSIF provider
- A WSIF provider is an implementation of a WSDL binding that can run a WSDL operation through a binding-specific protocol. WSIF includes SOAP providers, JMS providers, Java providers and EJB providers. These providers link the WSIF service to the underlying implementation of the service.
Apache no longer supports WSIF.
