Performance Monitoring Infrastructure client package
Use this page to learn how to use the PmiClient application and JMX connector to communicate to the Perf MBean in an application server.
A PMI client package
provides a PmiClient wrapper class to deliver PMI data to a client.

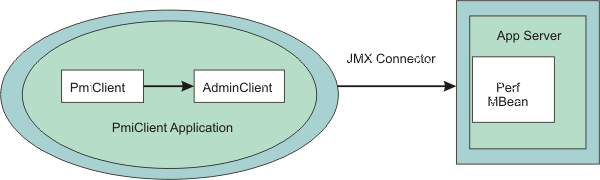

As shown in the following figure, the PmiClient API uses the AdminClient
API to communicate to the Perf MBean in an application server.
Performance Monitoring Infrastructure and Java Management Extensions:
The PmiClient API does not work if the JMX infrastructure and Perf MBean are not running. If we prefer to use the AdminClient API directly to retrieve PMI data,
you still have a dependency on the JMX infrastructure.
When using the PmiClient API, we have to pass the JMX connector protocol and port number to instantiate an object of the PmiClient. Once you get a PmiClient object, we can call its methods to list nodes, servers and MBeans, set the monitoring level, and retrieve PMI data.
The PmiClient API creates an instance of the AdminClient API and delegates your requests to the AdminClient API. The AdminClient API uses the JMX connector to communicate with the Perf MBean in the corresponding server and then returns the data to the PmiClient, which returns the data to the client.
