Unit test environment topology

We can use a single server unit test environment topology. The unit test environment is integrated with the product installation, and a script is provided to create the environment.

To create the environment, create a stand-alone application server. Next, use the uteconfig.sh/.bat script to create the batch unit test environment within that application server profile. Running the script configures the job scheduler. See topics on the uteconfig.bat|.sh script.

After the script is run, the unit test environment is integrated and all the necessary files are stored in the targeted profile. The selected application server is configured to host the job scheduler and job execution environment. The script also creates and configures local Derby databases to support the job components.

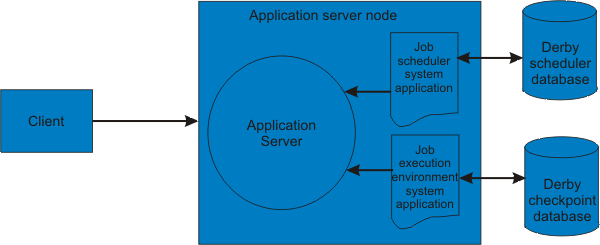

The following diagram shows the unit test environment topology:

Topology differences

and the batch unit test environment. The table lists

Environment	Topology
Batch	Network Deployment cell Derby database (default), DB2 , Oracle
Batch unit test environment	Stand-alone WebSphere Application Server Derby database (default)

Functional comparison

and the batch unit test environment. The table indicates whether a specific function is supported in the batch unit test environment

Function	Batch unit test environment	Batch environment
Supported workload types	Batch and CI	Batch, CI, and native
Batch programming model and container	Yes	Yes
Job checkpoint / restart	Yes	Yes
Job scheduler	Yes	Yes
Job management console	Yes	Yes
Job class	Yes	Yes
Job log	Yes	Yes
High availability job scheduler	No	Yes
Scalable scheduler and container	No	Yes
Service policies	No	Yes
WLM-based scheduling	No	Yes
Job usage accounting	No	Yes
