Migrating a cluster to IPv6



This section deals with migrating clusters when you are thinking of installing WebSphere MQ V6.0 on an IPv6 capable network.

The following gives an overview of approaches that can be taken when migrating a cluster to WebSphere MQ V6.0. Due to the variations that can occur within a cluster, the detail is deliberately general and should only be seen as a guide to the likely course of action you will need to take.



Migration scenarios (cluster topology)

Where an IPv6 capable system is to be added to a WebSphere MQ cluster, all full repository systems in that cluster must be IPv6 capable.

The following scenarios are seen as the ones most likely to occur in customer installations. They describe the changes that are likely to be required.

Scenario 1

A WebSphere MQ V5.3 or earlier cluster is installed on IPv4 only capable systems and we need to connect an IPv6 only capable system into the cluster. All CONNAMEs in cluster channel definitions are made using DNS names rather than IP addresses.

When adding a new IPv6 only system to the cluster, identify those queue managers that your new system will communicate with. These include:

  • The queue managers your new system will send messages to.

  • The queue managers your new system will receive messages from.

  • The full repository queue managers

The systems that you have identified must be upgraded before introducing the new system.

Recommended migration procedure:

  • Upgrade each of the systems hosting a full repository queue manager as shown in "Migrating a queue manager to IPv6" non-cluster scenario 1.

  • Upgrade the remaining cluster systems which need to be IPv6 capable as shown in "Migrating a queue manager to IPv6" non-cluster scenario 1.

With this configuration:

  • The new IPv6 only capable system will communicate with the cluster using IPv6 addressing

  • All other IPv4 systems that connect into the cluster will continue to communicate using IPv4 addressing

  • The systems in the cluster will be able to connect to each other using either IPv4 or IPv6 addressing. The decision as to which address is used depends on whether you have set IPADDRV to specify IPv4 or IPv6 connections.

Scenario 2

A WebSphere MQ V5.3 or earlier cluster is installed on IPv4 only capable systems and we need to connect an IPv6 only capable system into the cluster. Your network does not support adding both IPv6 and IPv4 addresses using the same hostname or you are using IP addresses rather than DNS names in the cluster channel CONNAMEs.

The problem here is likely to be that all of the systems cannot be switched to IPv6 simultaneously and some at least must remain only IPv4 capable. The systems that your new IPv6 only system communicates with must be IPv4 and IPv6 capable. We do not recommend simply adding a new set of IPv6 channels into the cluster for the IPv6 system to use, as the IPv4 system would also try to use them, resulting in communication errors.

The recommended approach is:

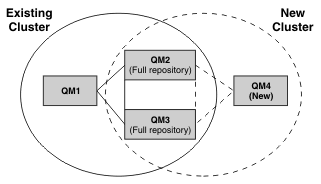

  • Define a new cluster which contains the IPv6 only capable system or systems with new IPv6 addresses and channel definitions. The existing cluster remains, and contains the IPv4 only system definitions. The image below gives a pictorial representation of this. QM1, QM2, and QM3 represent the original IPv4 cluster. QM2, QM3, and QM4 represent the new cluster created to allow the IPv6 only capable system (QM4) to connect into your configuration.

  • If you are using DNS names, we can give each of the systems separate DNS names for IPv4 and IPv6 (for example system1_IPv4.ibm.com and system1_IPv6.ibm.com).

  • Define a new CLUSRCVR channel and any corresponding CLUSSDR channels using the new IPv6 names or IP addresses on each system in the new cluster. In this way the systems with only IPv4 or IPv6 capability do not see channels which they are not able to use and no communications error will result.

There are both IPv4 and IPv6 definitions connecting the full repositories so that definitions for both new and existing cluster definitions are replicated between them. Also be aware that the queue managers QM1 and QM4 cannot communicate directly because they do not share a common network. They could communicate indirectly, for example by using ALIAS queues defined in the queue managers QM2 and QM3. In the configuration shown above you would need to pay attention to the ordering of application messages flowing between QM2 and QM3 because multiple routes exist, if this is relevant you could use BIND_OPEN to fix the route.
