Portlet API

Portlets are reusable components that provide access to Web-based content, applications, and other resources. Web pages, web services, applications, and syndicated content feeds can be accessed through portlets. Companies can create their own portlets or select portlets from a catalog of third-party portlets. Portlets are intended to be assembled into a larger portal page, with multiple instances of the same portlet displaying different data for each user.

From a user's perspective, a portlet is a window on a portal site that provides a specific service or information, for example, a calendar or news feed. From an application development perspective, portlets are pluggable modules that are designed to run inside a portlet container of a portal server.

The portlet container provides a runtime environment in which portlets are instantiated, used, and finally destroyed. Portlets rely on the portal infrastructure to access user profile information, participate in window and action events, communicate with other portlets, access remote content, lookup credentials, and to store persistent data. The Portlet API provides standard interfaces for these functions. The portlet container is not a stand-alone container like the servlet container. Instead, it is implemented as a thin layer on top of the servlet container and reuses the functionality provided by the servlet container.

IBM is working with other companies to standardize the Portlet API, making portlets interoperable between portal servers that implement the specification.

Portlets and the Servlet API

The abstract Portlet class is the central abstraction of the Portlet API. The Portlet class extends HTTPServlet, of the Servlet API. All portlets extend this abstract class indirectly, and inherit from HttpServlet, as shown:

...   +--javax.servlet.http.HttpServlet
         |
         +--org.apache.jetspeed.portlet.Portlet
               |
               +--org.apache.jetspeed.portlet.PortletAdapter
                    |
                                        +--com.myCompany.myApplication.myPortlet

Therefore, portlets are a special type of servlet, with properties that allow them to easily plug into and run in the portal server. Unlike servlets, portlets cannot send redirects or errors to browsers directly, forward requests, or write arbitrary markup to the output stream. The portlet container relies on the J2EE architecture implemented by WebSphere Application Server. As a result, portlets are packaged similar to J2EE Web applications and are deployed like servlets.

Generally, portlets are administered more dynamically than servlets. The following updates can be applied without having to start and restart the portal server:

The portlet container relies on the J2EE architecture implemented by WebSphere Application Server. As a result, portlets are packaged in WAR files similar to J2EE Web applications and are deployed like servlets. Like other servlets, a portlet is defined to the appserver using the servlet deployment descriptor (web.xml). This file defines the portlet's class file and read-only initialization parameters.

The following figure shows a portlet after its WAR file is deployed. For each portlet deployed on the portal server, it creates a servlet, or portlet class instance, on the appserver.

The initialization parameters are set by the portlet developer and can be read by the portlet using the PortletConfig object. The servlet deployment descriptor can contain multiple Web applications, each defined by the <servlet> element. In addition, each servlet definition can point to the same portlet class file, thus creating different PortletConfig objects with different initialization parameters for each portlet class instance. For more information, see Web application deployment descriptor.

Portlet deployment descriptor

In addition to the servlet descriptor, portlets must also provide a portlet deployment descriptor (portlet.xml) to define the portlet's capabilities to the portal server. This information includes configuration parameters specific to a particular portlet or portlet application as well as general information that all portlets provide, such as the type of markup that the portlet supports. The portal server uses this information to provide services for the portlet. For example, if a portlet registers its support for help and edit mode in the portlet deployment descriptor, the portal server will render icons to allow the user to invoke the portlet's help and edit pages.

The following is an example portlet deployment descriptor with the minimum tags.

For detailed information, including a description of each tag, see Deployment descriptors .

Portlet concepts

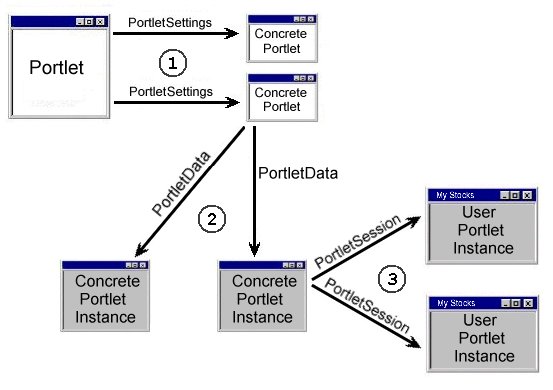

The following figure shows different variations of a portlet as it is created, placed on a page, and accessed by users. Notice that the first two steps involve the use of persistent data, but for the third step, the data is available only for the duration of the session.

The portal administrator uses the administrative interface to deploys a new portlet application WAR file or install a copy of a portlet. Either action creates a concrete portlet, which is a portlet parameterized by a single PortletSettings object. There can be many concrete portlets for each portlet. PortletSettings are read/write accessible and persistent. The PortletSettings contains configuration parameters initially defined in the portlet deployment descriptor.

The use of concrete portlets allows many instances of a portlet to run with different configurations, without creating extra portlet class instances. During the lifecycle of a single portlet, many concrete portlets can be created and destroyed. There is no object that explicitly represents the concrete portlet. The same concrete portlet can be shared across many users.

The portlet is placed on a page by a user or an administrator. This creates a concrete portlet instance, which is a concrete portlet parameterized by a single PortletData object. There can be many concrete portlet instances per concrete portlet. PortletData stores persistent information for a portlet that has been added to a page. For example, a user can edit a stock quotes portlet and save a list of stock symbols for the companies to track.

The scope of the PortletData depends on the scope of the page that the concrete portlet is on.

When a user accesses a page that contains a portlet, that creates a user portlet instance. When a user logs into the portal, the portal server creates a PortletSession for each of the user's portlets. A concrete portlet instance parameterized by a PortletSession is known as a user portlet instance. There can be many user portlet instances per concrete portlet instance.

A user portlet instance is a concrete portlet instance parameterized by a single PortletSession. There can be many user portlet instances per concrete portlet instance. The PortletSession stores transient information related to a single use of the portlet.

Portlet Applications

Portlet applications provide the means to package a group of related portlets that share the same context. The context contains all resources, for example, images, properties files, and classes. All portlets must be packaged as part of a portlet application.

Portlet modes

Portlet modes allow a portlet to display a different user interface, depending on the task required of the portlet. A portlet has four modes of display, which is defined in the portlet deployment descriptor . The portlet container maintains the portlet mode in the Portlet.Mode object. The following modes are provided by the Portlet API:

The Portlet API provides methods for the portlet to determine the current or previous mode. All portlets must support the VIEW mode. The portlet container provides controls for users to interact with portlets on their portal pages. Clicking on one of these controls can change the portlet's mode or state. The following shows a blank title bar of a portlet in view mode.

This title bar displays the Edit, Help, Minimize, and Maximize icons. Clicking the pencil icon places the portlet in edit mode.

Portlet states

Portlet states allow users to change how the portlet window is displayed within the portal. In a browser, users invoke these states with icons in the title bar in the same way that Windows applications are manipulated. Portlet states are maintained in the PortletWindow.State object with a boolean value.

The Portlet API provides methods for the portlet to determine the current state.

Elements of the Portlet API

This section describes the basic interfaces, classes, and methods of the Portlet API. The following figure shows a map of many of the common objects in the Portlet API.

Portlet class

The abstract Portlet class is the central abstraction of the Portlet API. All portlets extend this abstract class by extending one of its subclasses, such as PortletAdapter, that provide methods helpful for the developer.

Portlet life cycle

The portlet container calls the following methods of the abstract portlet during the portlet's life cycle ²:

init()

The portlet is constructed, after portal initialization, and then initialized with the init() method. The portal always instantiates only a single instance of the portlet, and this instance is shared among all users, exactly the same way a servlet is shared among all users of an appserver.

initConcrete()

After constructing the portlet and before the portlet is accessed for the first time, the concrete portlet is initialized with the PortletSettings.

service()

The portal calls the service() method when the portlet is required to render it's content. During the life cycle of the portlet, the service() method is typically called many times. For each portlet on the page, the service() method is not called in a guaranteed order and may even be called in a different order for each request.

destroyConcrete()

The concrete portlet is taken out of service with the destroyConcrete() method. This can happen when an administrator deletes a concrete portlet during runtime on the portal server.

destroy()

When the portal is terminating, portlets are taken out of service, then destroyed with the destroy() method. Finally the portlet is garbage collected and finalized.

² This represents the methods called on all portlets. Other methods are called for portlets that implement listeners. See the Listener lifecycle for more information.

Portlet Adapter

Portlets do not extend the abstract Portlet class directly, but rather extend PortletAdapter or any other helper class that in turn extends Portlet. Extending one of these classes helps protect your portlet from changes in the abstract Portlet class. Moreover it saves you the work of having to implement all of the methods of the Portlet interface, even if your portlet does not need to use them all. Using the PortletAdapter class, you only have to overwrite the methods you really need.

In its service() method, the PortletAdapter class invokes methods corresponding to the portlet mode. Portlets that extend this class can overwrite the doView(), doEdit(), and doHelp() methods without having to test the mode or write a specific service() method.

Additionally, the PortletAdapter enables a portlet to store variables with the concrete portlet. Concrete portlet variables differ from Java instance variables because they are bound to the portlet class or non-concrete portlet. PortletAdapater provides the methods setVariable(), getVariable() and removeVariable() to work with concrete portlet variables.

Core objects

PortletRequest

The PortletRequest object is passed to the portlet through the login(), beginPage(), endPage() and service() methods, providing the portlet with request-specific data and the opportunity to access further important information as listed below.

MIME types	Markup types
Text/html	html
Text/vnd.wap.wml	wml
Text/html	chtml

PortletResponse

The response object encapsulates information to be returned from the server to the client. PortletResponse is passed via the beginPage(), endPage(), and service() methods and can be used by the portlet to return portlet output using a Java PrintWriter.

The response also includes methods for creating the PortletURI object or qualifying portlet markup with the portlet's namespace.

Each portlet runs in its own unique namespace. The encodeNamespace() method is used by portlets to bring attributes in the portlet output to avoid name clashes with other portlets. Attributes can include parameter names, global variables, or javascript function names.

PortletSession

The PortletSession holds user-specific data for the concrete portlet instance of the portlet, creating a portlet user instance. Concrete portlet instances differ from each other only by the data stored in their PortletData. Portlet user instances differ from each other only by the transient data stored in their PortletSession. Any persistent data must be stored using PortletData. Information stored in a portlet's instance variables is shared between all concrete portlet instances and even between all concrete portlets - with read and write access. Make sure you do not use instance attributes for user-specific data.

On the other hand, you have to be cautious about what the portlet adds to the session, especially if the portlet ever runs in a cluster environment where the session is being serialized to a shared database. Everything being stored in the session must be serializable, too.

Like the HttpSession, a PortletSession is not available on an anonymous page. During login, a PortletSession is automatically created for each portlet on a page. To get a PortletSession, the getSession() method (available from the PortletRequest) has to be used. The method returns the current session or, if there is no current session and the given parameter "create" is true, it creates one and returns it.

Listeners

The Portlet API provides listeners, which can add more functionality for a portlet. To enable the listener's functionality, one of the following interfaces must be implemented by the portlet.

PortletSessionListener

In addition to the concrete portlet instance, which exists for each portlet occurrence on a page, a portlet may have an even finer granularity. The PortletSessionListener allows a portlet to recognize the lifecycle of a user portlet instance:

PortletPageListener

A portlet has no control or awareness of the order in which the output from all of the portlets on the page is written. The PortletPageListener allows a portlet to insert markup at the beginning and ending of a page.

Listener lifecycle

When implementing PortletSesssionListener and PortletPageListener, the following methods are called on the portlet during its lifecycle.

PortletTitleListener

The PortletTitleListener interface is used to allow the portlet title, as it is displayed in the title bar, to be changed based on a condition (for example, the type of device used to access the portal) or user input (for example, a preference that the user sets on the edit page). If the Listener is not implemented, the portlet displays the title specified on the <title> element (under <language>) of the portlet deployment descriptor.

PortletSettingsAttributesListener

This interface listens for changes to the attributes of the PortletSettings, like when an administrator configures a concrete portlet.

PortletApplicationSettingsAttributesListener

This interface listens for changes to the attributes of the PortletApplicationSettings, like when an administrator configures a concrete portlet application.

Configuration objects

The following objects are used by the portlet to retrieve and store data, depending on how the data is used:

PortletConfig

The PortletConfig provides the non-concrete portlet with its initial configuration. The configuration holds information about the portlet class. This information is valid for every concrete portlet derived from the portlet.

A portlet's configuration is initially read from its servlet deployment descriptor. This information is set by the portlet developer. The configuration is read-only and cannot be changed by the portlet.

The PortletConfig is passed to the portlet in the init() method of the abstract Portlet and is used to access portlet-specific configuration parameters using getInitParameters(). PortletConfig parameters are name/value pairs available for the complete life cycle of the non-concrete portlet. Non-concrete portlet's parameters are defined by the <init-param> tag in the servlet deployment descriptor.

PortletSettings

The PortletSettings object provides the concrete portlet with its dynamic configuration. The configuration holds information about the concrete portlet. This information is valid for every concrete portlet instance of the concrete portlet.

A concrete portlet's configuration is initially read from the portlet deployment descriptor. The configuration is read-only and can be written by the portlet only when the portlet is in configure mode. This information is normally maintained by the portal administrator and may be changed while the portal server is running. The portlet can get, set, and remove attributes during one request. To commit the changes, the store() method has to be called.

The PortletSettings object can be accessed with the getPortletSettings() method, available from the PortletRequest. Often, it is used to access portlet-specific configuration parameters using getAttribute(). Attributes are name/value pairs available for the complete life cycle of a concrete portlet. Concrete portlet attributes are defined by the <config-param> tag in the portlet deployment descriptor.

PortletApplicationSettings

The PortletApplicationSettings object provides the concrete portlet application with its dynamic configuration. The configuration holds information about the portlet application that is shared across all concrete portlets included in the application.

A concrete portlet application's configuration is initially read from the portlet deployment descriptor. The configuration is read only and can be written by the portlet only when the portlet is in configure mode. This information is normally maintained by the portal administrator and may be changed while the portal server is running. A portlet in the application can get, set, and remove attributes during one request. To commit the changes, the store() method has to be called.

The PortletApplicationSettings can be accessed with the getApplicationSettings() method, available from the PortletSettings object. It is used to access portlet-specific configuration parameters using getAttribute(). Attributes are name/value pairs available for the complete life cycle of a concrete portlet application. Concrete portlet application attributes are defined by the <context-param> tag in the portlet deployment descriptor.

PortletData

The PortletData holds data for the concrete portlet instance. For each occurrence on a page there is a concrete portlet instance. The PortletData contains persistent information about the concrete portlet instance while the PortletSession contains only the transient data of the user portlet instance.

There is one concrete portlet instance for each occurrence of a portlet on a page. A page can be owned by either a single user (personal page) or by a single group of users (group page). PortletData contains user-specific data on a personal page and group-specific data on a group page.

The PortletData object stores attributes as name/value pairs. The portlet can get, set, and remove attributes during one request. To commit the changes, the store() method has to be called. The data is read only and can be written by the portlet only when the portlet is in edit mode.

Miscellaneous objects

PortletContext

The PortletContext interface defines a portlet's view of the portlet container within which each portlet is running. PortletContext also allows a portlet to access resources available to it. For example, using the context, a portlet can access the portlet log, access context parameters common to all portlets within the portlet application, obtain URL references to resources or access portlet services .

The most important information related to the PortletContext is described in detail below.

PortletWindow

The PortletWindow object represents the window that encloses a portlet. For example, on an HTML page, the portlet window can typically be rendered as a table cell. The portlet window can send events on manipulation of its various window controls, like when the user clicks minimize or close. The portlet, in turn, can interrogate the window about its current state. For example, a portlet may render its content differently depending on whether its window is maximized or not. The PortletWindow is available using the getWindow() method of the PortletRequest object.

User

The User interface contains methods for accessing attributes about the user, such as the user's full name or user name.

Portlet events

Portlet events contain information about an event to which a portlet might need to respond. For example, when a user clicks a link or button, this generates an action event. To receive notification of the event, the portlet must have an event listener implemented within the portlet class.

The portlet container delivers all events to the respective event listeners (and therefore the portlets) before generating the new content that the event requires. Should a listener, while processing the event, find that another event needs to be generated, that event will be queued by the portlet container and delivered at a point of time that is at the discretion of the portlet container. It is only guaranteed that it will be delivered and that it will happen before the content generation phase.

Once the content generation phase has started, no further events will be delivered. For example, messages cannot be sent from within the beginPage(), service() and endPage() methods. The resulting message event would not be delivered and essentially discarded.

The event listener is implemented directly in the portlet class. The listener can access the PortletRequest from the event and respond using the PortletRequest or PortletSession attributes.

Action events

An ActionEvent is sent to the portlet when an HTTP request is received that is associated with a PortletAction. To receive action events, the portlet class must implement the ActionListener interface and an object with the type PortletAction. The PortletAction is linked to a URI that references the action by using the PortletURI class and its addAction() method. The ActionEvent can be used to get the associated PortletAction and the PortletRequest.

Typically, a PortletAction is linked with HTTP references or buttons in HTML forms. The ActionEvent of the clicked link then carries the associated PortletAction back to the portlet, which in turn is able to implement different processing paths based on the users' actions. A portlet action can carry any information. However, it should not store a request, response, or session object. This information is part of the action event that will be sent to the registered action listener.

The following shows how a JSP uses the URI, including the PortletAction. When the user clicks the "Add" button, a new HTTP request is sent to the action URL of the FORM.

DefaultPortletAction

Window events

A WindowEvent is sent by the portlet container whenever a user clicks on one of the control buttons that change the window's state, such as maximize, minimize or restore. A WindowEvent can be used, for example, to display more information when the user maximizes the portlet that would be shown in its normal state. To receive window events, the WindowListener interface must be implemented at the portlet class.

The Portlet API provides a WindowAdapter class that implements empty methods of the WindowListener. By extending WindowAdapter, the portlet developer needs to implement only those callback methods needed by the portlet. Without the WindowAdapter, implement all callback methods, even if the method is empty. See Refreshing the portlet cache for an example of a WindowListener.

Message events

Message events can be sent from one portlet to others if the recipient portlets are members of the same portlet application and are placed on the same page as the sending portlet. Additionally, a DefaultPortletMessage can cross portlet application boundaries and may be send to all portlets on a page. A MessageEvent can be sent actively to other portlets only when the portlet is in the event processing cycle of the portlet container, otherwise an exception is thrown. There are two different types of messages:

Message events are useful when changes in one portlet should be reflected in another one. An object with the type PortletMessage has to be implemented which is passed via the MessageEvent. The portlet receiving the message must implement the MessageListener interface and an object with the type PortletMessage.

For an example of how portlets can send messages to each other, see Portlet messaging .

PortletService

To enable portlets to use pluggable services via dynamic discovery, the Portlet API provides the PortletService interface. A PortletService is accessed from the PortletContext.getService() method that looks up the appropriate factory for the service, creates the service and returns it to the portlet.

Various services may be implemented by different vendors, for example, a SearchService, LocationService, ContentAccessService, or a MailService. The Portlet API provides a ContentAccessService.

Create your own portlet service

Step 1 is not required if you want to implement your service against an existing interface. This is also the case for step 3 if you want to reuse an existing service factory.

Writing the service's factory

Usually you will not have to write a factory of your own as there are two generic factories being shipped with the portal server in the org.apache.jetspeed.portletcontainer.service package. The PortletServiceDefaultFactory always returns a new instance of a given service and the PortletServiceCacheFactory always returns the same instance of a given service. You can use one of these factories rather than implementing your service as a singleton. Factories have to implement the PortletServiceFactory interface of the org.apache.jetspeed.portlet.service.spi package.

The following is the factory class for HelloWorldService:


package my.portlet.service.factory;

import org.apache.jetspeed.portlet.service.*;
import org.apache.jetspeed.portlet.service.spi.*;

public class HelloWorldServiceFactory implements PortletServiceFactory
{
    PortletServiceProvider psp = null;

    public PortletService createPortletService(Class service,
                                               Properties serviceProperties,
                                               ServletConfig servletConfig)
        throws PortletServiceUnavailableException
    {
        if (psp != null) {
            return psp;
        }
        else {
            psp = new HelloWorldServiceImpl();

            psp.init(new PortletServiceConfigImpl(
                            service,
                            serviceProperties,
                            servletConfig));
            return psp;
        }
    }
}

Content access service

Various services could be implemented by different vendors (for example, a SearchService or a MailService). The Portlet API provides a ContentAccessService that retrieves content from sources outside the intranet, often when a proxy must be used. This service allows portlets to access content from remote web sites or from JSPs and servlets in the portal web application. (In contrast, the PortletContext.include method only can include JSPs local to the portlet application.)

Example: ContentAccessService


import org.apache.jetspeed.portlet.service.ContentAccessService;
.
.
.
ContentAccessService service =
   (ContentAccessService)portletContext.getService(ContentAccessService.class);

//get a URL
URL url = service.getURL("http://www.ibm.com", request, response);

//include the content of a web site into the portlet
service.include("http://www.ibm.com", request, response);

//include a JSP or servlet belonging to the portal web application
service.include("/templates/weather.jsp", request, response);
.
.
.

Hint: The disadvantage when accessing internet resources directly is that the content is simply taken and written to the portlet's output. This means that all relative links to other pages or images will be broken. This can be solved by parsing the content or use some enhanced browser portlet.

The ContentAccessService can also open an SSL connection to remote applications. The code is the same as for nonsecure connections (see Example: ContentAccessService) except that you specify a secure protocol (HTTPS) in the URL for the include() method. However, the portal must be configured to support SSL as described in Portal configuration, see PortletServices.properties .

Deployment descriptors

The WAR file for a portlet application must contain two descriptor documents: the Web application deployment descriptor and the portlet deployment descriptor. The definition of the servlets in the Web application deployment descriptor must be in the same order as the definition of portlets in the portlet deployment descriptor.

Web application deployment descriptor

As with other servlets following the J2EE model, portlets are packaged as WAR or EAR files with a Web application deployment descriptor (web.xml). This descriptor defines each portlet as a servlet within the Web application, including unique identifiers for each portlet, the portlet class, and initialization parameters.

Portlet deployment descriptor

The DTD for the portlet deployment descriptor is located at wp_root/app/web/dtd/portlet_1.1.dtd. The descriptor for a single WAR file is saved as the file portlet.xml and must begin with the following XML and DOCTYPE declarations:

The following shows the structure of the portlet deployment descriptor (portlet.xml). Click any tag to get more information about it's use.

<portlet-app-def>

Required. Top level element that contains information about the portlet application. This element includes exactly one <portlet-app> element and one or more <concrete-portlet-app> elements.

<portlet-app uid="uid">

Required. Contains information about the portlet application. The uid for each portlet must be unique within the portlet application. See Guidelines for portlet UIDs. The following are subelements of <portlet-app>.

<portlet-app-name>

Exactly one is required. Indicates the name of the portlet application.

<portlet id="id" href="href" major-version="version" minor-version="version">

At least one is required. Contains elements describing a portlet that belongs to this portlet application. id and href is required. The id must be unique within the portlet application. The href attribute points to the identifier of the servlet, as in WEB-INF/web.xml#servlet_id .
Use the version attributes for maintaining and supporting multiple versions of the portlet. The following are subelements of <portlet>:

<portlet-name>

Required. The name of the portlet. This name does not appear on the portal page.

<cache>

Optional. Describes how the portal handles caching the output of this portlet. The following are subelements of <cache>:

<expires>

Required if <cache> is specified. Indicates the number of seconds after which the portlet's output is refreshed.

0 indicates that the portlet's output always expires. Each request causes the portlet to refresh its output. This is the default setting if <cache> is not present.

Any number greater than 0 indicates the number of seconds the portlet output is cached. After the cache time expires, subsequent requests cause the portlet to refresh its output.

-1 indicates that the portlets output never expires. After the portlet is initialized, its content is no longer refreshed.

<shared>

Required if <cache> is specified. Indicates if the portlet output is cached and shared with all users or for each individual user. Specify "yes" or "no".

<allows>

Optional. Indicates the states supported by the portlet. No more than one <allows> element can be specified for a portlet. These settings only affect the rendering of portlets in HTML. The following are subelements of <allows>:

<maximized/>

Optional. Indicates whether the portlet can be maximized. When maximized, the portlet replaces all other portlets on the portal page. If this element is present, the maximize button is rendered on the portlet's title bar.

<minimized/>

Optional. Indicates whether the portlet can be minimized. When minimized, the portlet is rendered only as a title bar. If this element is present, the minimize button is rendered on the portlet's title bar.

Required. Indicates the modes and markup types supported by the portlet. All portlets must support the view mode. Other modes must be provided only if they are supported by the portlet. The following are subelements of <supports>:

<markup name="name">

At least one is required. Indicates the type of markup this portlet supports. name is one of the following values:

html
wml
chtml

Indicate one <markup> tag for each markup type, for example:


   <markup name="html">
      ...
   </markup>
   <markup name="wml">
      ...
   </markup>

The following are subelements of <markup>:

<view/>: Required. Indicates that this portlet supports view mode.
<edit/>: Optional. Indicates that this portlet supports edit mode. This element is optional. If edit mode is supported, the portlet must supply methods that users can invoke to customize the portlet for their own use.
<help/>: Optional. Indicates that this portlet supports help mode. This element is optional. If help mode is supported, the portlet must supply help output that will display in place of the portlet when the user clicks the help icon.
<configure/>: Optional. Indicates that this portlet supports configure mode. This element is optional.
