Put messages on remote queues
We can use remote queue definition objects to resolve a queue name to a transmission queue to an adjacent queue manager.

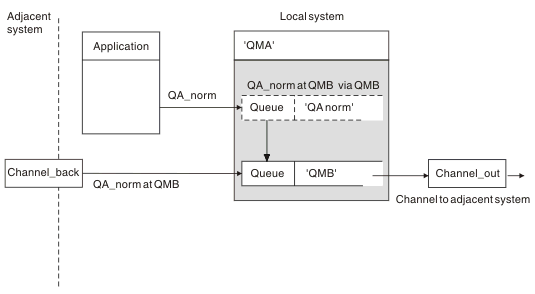

In a distributed-queuing environment, a transmission queue and channel are the focal point for all messages to a location whether the messages originate from applications in your local system, or arrive through channels from an adjacent system. Figure 1 shows an application placing messages on a logical queue named 'QA_norm'. The name resolution uses the remote queue definition 'QA_norm' to select the transmission queue QMB. It then adds a transmission header to the messages stating 'QA_norm at QMB'.
Messages arriving from the adjacent system on 'Channel_back' have a transmission header with the physical queue name 'QA_norm at QMB', for example. These messages are placed unchanged on transmission queue QMB.
The channel moves the messages to an adjacent queue manager.
- Define the message channel from the adjacent system
- Define the message channel to the adjacent system
- Create the transmission queue QMB
- Define the remote queue object 'QA_norm' to resolve the queue name used by applications to the destination queue name, destination queue manager name, and transmission queue name
In a clustering environment, you only need to define a cluster-receiver channel at the local queue manager. You do not need to define a transmission queue or a remote queue object. See Clusters.
More about name resolution
The effect of the remote queue definition is to define a physical destination queue name and queue manager name. These names are put in the transmission headers of messages.
Incoming messages from an adjacent system have already had this type of name resolution carried out by the original queue manager. Therefore they have the transmission header showing the physical destination queue name and queue manager name. These messages are unaffected by remote queue definitions.
