Creating two-overlapping clusters with a gateway queue manager

Follow the instructions in the task to construct overlapping clusters with a gateway queue manager. Use the clusters as a starting point for the following examples of isolating messages to one application from messages to other applications in a cluster.


The example cluster configuration used to illustrate isolating cluster message traffic is shown in Figure 1. The example is described in Clustering: Application isolation using multiple cluster transmission queues.

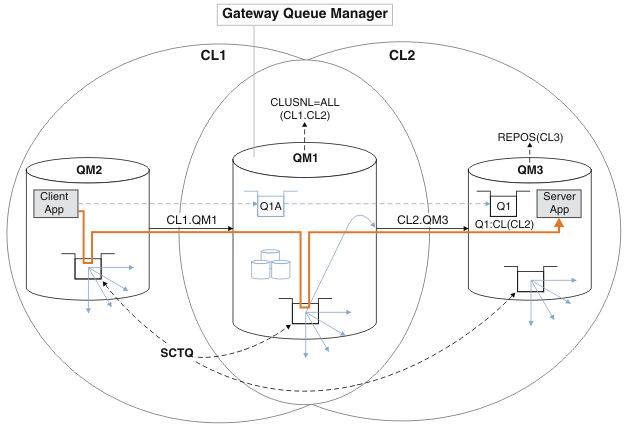

Figure 1. Client-server application deployed to hub and spoke architecture using IBM MQ clusters

To make the number of steps to construct the example as few as possible, the configuration is kept simple, rather than realistic. The example might represent the integration of two clusters created by two separate organizations. For a more realistic scenario, see Clustering: Planning how to configure cluster transmission queues.

Follow the steps to construct the clusters. The clusters are used in the following examples of isolating the message traffic from the client application to the server application.

The instructions add a couple of extra queue managers so that each cluster has two repositories. The gateway queue manager is not used as a repository for performance reasons.


Procedure

  1. Create and start the queue managers QM1, QM2, QM3, QM4, QM5.
    crtmqm -sax -u SYSTEM.DEAD.LETTER.QUEUE QM n
    strmqm QmgrName

    Note: QM4 and QM5 are the backup full repositories for the clusters.
  2. Define and start listeners for each of the queue managers.
    *... On QM n
    DEFINE LISTENER(TCP141 n) TRPTYPE(TCP) IPADDR(hostname) PORT(141 n) CONTROL(QMGR) REPLACE
    START LISTENER(TCP141 n)

  3. Create a cluster name list for all of the clusters.
    *... On QM1
    DEFINE NAMELIST(ALL) NAMES(CL1, CL2) REPLACE

  4. Make QM2 and QM4 full repositories for CL1, QM3 and QM5 full repositories for CL2.
    1. For CL1:
      *... On QM2 and QM4
      ALTER QMGR REPOS(CL1) DEFCLXQ(SCTQ)

    2. For CL2:
      *... On QM3 and QM5
      ALTER QMGR REPOS(CL2) DEFCLXQ(SCTQ)

  5. Add the cluster-sender and cluster-receiver channels for each queue manager and cluster. Run the following commands on QM2, QM3, QM4 and QM5, where c, n, and m take the values shown in Table 1 for each queue manager:
    Table 1. Parameter values for creating clusters 1 and 2
    Queue manager Cluster
    c
    Other repository
    n
    This repository
    m
    QM2 1 4 2
    QM4 1 2 4
    QM3 2 5 3
    QM5 2 3 5
    *... On QM m
    DEFINE CHANNEL(CL c.QM n) CHLTYPE(CLUSSDR) CONNAME('localhost(141 n)') CLUSTER(CL c) REPLACE
    DEFINE CHANNEL(CL c.QM m) CHLTYPE(CLUSRCVR) CONNAME('localhost(141 m)') CLUSTER(CL c) REPLACE

  6. Add the gateway queue manager, QM1, to each of the clusters.
    *... On QM1
    DEFINE CHANNEL(CL1.QM2) CHLTYPE(CLUSSDR) CONNAME('localhost(1412)') CLUSTER(CL1) REPLACE
    DEFINE CHANNEL(CL1.QM1) CHLTYPE(CLUSRCVR) CONNAME('localhost(1411)') CLUSTER(CL1) REPLACE
    DEFINE CHANNEL(CL2.QM3) CHLTYPE(CLUSSDR) CONNAME('localhost(1413)') CLUSTER(CL2) REPLACE
    DEFINE CHANNEL(CL2.QM1) CHLTYPE(CLUSRCVR) CONNAME('localhost(1411)') CLUSTER(CL2) REPLACE

  7. Add the local queue Q1 to queue manager QM3 in cluster CL2.
    *... On QM3
    DEFINE QLOCAL(Q1) CLUSTER(CL2) REPLACE

  8. Add the clustered queue manager alias Q1A to the gateway queue manager.
    *... On QM1
    DEFINE QALIAS(Q1A) CLUSNL(ALL) TARGET(Q1) TARGTYPE(QUEUE) DEFBIND(NOTFIXED) REPLACE

    Note: Applications using the queue manager alias on any other queue manager but QM1, must specify DEFBIND(NOTFIXED) when they open the alias queue. DEFBIND specifies whether the routing information in the message header is fixed when the queue is opened by the application. If it is set to the default value, OPEN, messages are routed to Q1@QM1. Q1@QM1 does not exist, so messages from other queue managers end up on a dead letter queue. By setting the queue attribute to DEFBIND(NOTFIXED), applications such as amqsput, which default to the queue setting of DEFBIND, behave in the correct way.
  9. Add the cluster queue manager alias definitions for all the clustered queue managers to the gateway queue manager, QM1.
    *... On QM1
    DEFINE QREMOTE(QM2) RNAME(' ') RQMNAME(QM2) CLUSNL(ALL) REPLACE
    DEFINE QREMOTE(QM3) RNAME(' ') RQMNAME(QM3) CLUSNL(ALL) REPLACE

    Tip: The queue manager alias definitions on the gateway queue manager transfer messages that refer to a queue manager in another cluster; see Clustered queue manager aliases.


What to do next

  1. Test the queue alias definition by sending a message from QM2 to Q1 on QM3 using the queue alias definition Q1A.
    1. Run the sample program amqsput on QM2 to put a message.
      C:\IBM\MQ>amqsput Q1A QM2
      Sample AMQSPUT0 start
      target queue is Q1A
      Sample request message from QM2 to Q1 using Q1A

      Sample AMQSPUT0 end

    2. Run the sample program amqsget to get the message from Q1 on QM3
      C:\IBM\MQ>amqsget Q1 QM3
      Sample AMQSGET0 start
      message <Sample request message from QM2 to Q1 using Q1A>
      no more messages
      Sample AMQSGET0 end

  2. Test the queue manager alias definitions by sending a request message and receiving a reply message on a temporary-dynamic reply queue.

    The diagram shows the path taken by the reply message back to a temporary dynamic queue, which is called RQ. The server application, connected to QM3, opens the reply queue using the queue manager name QM2. The queue manager name QM2 is defined as a clustered queue manager alias on QM1. QM3 routes the reply message to QM1. QM1 routes the message to QM2.

    Figure 2. Using a queue manager alias to return the reply message to a different cluster

    The way the routing works is as follows. Every queue manager in each cluster has a queue manager alias definition on QM1. The aliases are clustered in all the clusters. The grey dashed arrows from each of the aliases to a queue manager show that each queue manager alias is resolved to a real queue manager in at least one of the clusters. In this case, the QM2 alias is clustered in both cluster CL1 and CL2, and is resolved to the real queue manager QM2 in CL1. The server application creates the reply message using the reply to queue name RQ, and reply to queue manager name QM2. The message is routed to QM1 because the queue manager alias definition QM2 is defined on QM1 in cluster CL2 and queue manager QM2 is not in cluster CL2. As the message cannot be sent to the target queue manager, it is sent to the queue manager that has the alias definition.

    QM1 places the message on the cluster transmission queue on QM1 for transferal to QM2. QM1 routes the message to QM2 because the queue manager alias definition on QM1 for QM2 defines QM2 as the real target queue manager. The definition is not circular, because alias definitions can refer only to real definitions; the alias cannot point to itself. The real definition is resolved by QM1, because both QM1 and QM2 are in the same cluster, CL1. QM1 finds out the connection information for QM2 from the repository for CL1, and routes the message to QM2. For the message to be rerouted by QM1, the server application must have opened the reply queue with the option DEFBIND set to MQBND_BIND_NOT_FIXED. If the server application had opened the reply queue with the option MQBND_BIND_ON_OPEN, the message is not rerouted and ends up on a dead letter queue.

    1. Create a clustered request queue with a trigger on QM3.
      *... On QM3
      DEFINE QLOCAL(QR) CLUSTER(CL2) TRIGGER INITQ(SYSTEM.DEFAULT.INITIATION.QUEUE) PROCESS(ECHO) REPLACE

    2. Create a clustered queue alias definition of QR on the gateway queue manager, QM1.
      *... On QM1
      DEFINE QALIAS(QRA) CLUSNL(ALL) TARGET(QR) TARGTYPE(QUEUE) DEFBIND(NOTFIXED) REPLACE

    3. Create a process definition to start the sample echo program amqsech on QM3.
      *... On QM3
      DEFINE PROCESS(ECHO) APPLICID(AMQSECH) REPLACE

    4. Create a model queue on QM2 for the sample program amqsreq to create the temporary-dynamic reply queue.
      *... On QM2
      DEFINE QMODEL(SYSTEM.SAMPLE.REPLY) REPLACE

    5. Test the queue manager alias definition by sending a request from QM2 to QR on QM3 using the queue alias definition QRA.
      1. Run the trigger monitor program on QM3.
        runmqtrm -m QM3

        The output is
        C:\IBM\MQ>runmqtrm -m QM3
        5724-H72 (C) Copyright IBM Corp. 1994, 2020. ALL RIGHTS RESERVED.
        01/02/2012  16:17:15: IBM MQ trigger monitor started.

        __________________________________________________
        01/02/2012  16:17:15: Waiting for a trigger message

      2. Run the sample program amqsreq on QM2 to put a request and wait for a reply.
        C:\IBM\MQ>amqsreq QRA QM2
        Sample AMQSREQ0 start
        server queue is QRA
        replies to 4F2961C802290020
        A request message from QM2 to QR on QM3

        response <A request message from QM2 to QR on QM3>
        no more replies
        Sample AMQSREQ0 end
