Partitioning libraries and modules
When you put artifacts in libraries, you can share those artifacts with modules. The method that you use to package the libraries and their contents can affect maintenance and scalability.
The most important consideration is to package according to the encapsulation boundary, by minimizing library and module dependencies.

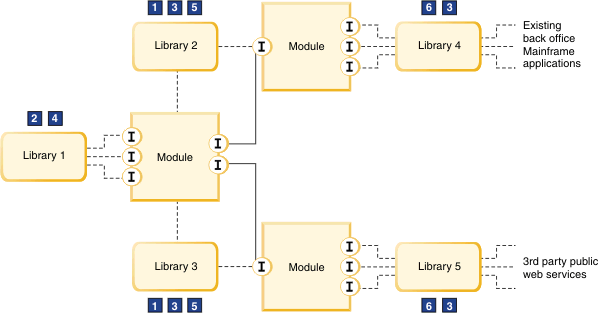

You can use this approach to make changes within the boundary with the confidence that you will not affect things outside it, and to assign stronger ownership of the design and runtime artifacts based on these boundaries. The picture below illustrates this approach.
- 1 If you need to share an artifact between modules or mediation modules, place it in a library.
- 2 Avoid putting all your artifacts in a single library that is shared by multiple modules. If you need to replace an artifact, you must rebuild and redeploy all of the modules that depend on the library.
- 3 A library should contain only those artifacts that are needed by the modules that reference it. However, artifacts that share namespaces must be in the same library.
- 4 Use a dedicated public library for interfaces and wsdl files of exports that are callable by clients. Artifacts that are not needed by clients should not be in a public library.
- 5 You often use special interfaces and business objects internally that match neither the publicly exposed interfaces and business objects, nor the proprietary interfaces and business objects of external services or endpoints. As explained in point #3, these artifacts should go in their own private libraries. This division isolates the internal implementation from the outside world. The more logic there is inside the boundary, the more important it is to have a separate set of libraries.
- 6 Use dedicated libraries to contain artifacts for calling external services, for example imported Web Service Definition Language (WSDL) files for third party libraries or industry schemas. Typically, you would not need to edit the contents of these libraries, because they are owned externally. Consider minimizing the contents of these libraries by including only those artifacts that you will use, especially if the library will be referenced by multiple modules.
For example, if the library has 400 data types and you are going to use only 20, try to keep only the 20 data types that you use in your library.
- 7 If a library is extremely large, perhaps because of an industry schema, consider using runtime sharing.
