Retrying alternate endpoints of the same service

Finding alternate endpoints with the Endpoint Lookup primitive and retrying them with either the Service Invoke or Callout node primitive.

Retrying alternate endpoints is done with the help of the Endpoint Lookup primitive. This primitive is used to compile a list of endpoints using a given interface and to populate the EndpointLookupContext area of the primitiveContext in the SMO. The Target in the SMOHeader is also set with the first match and the AlternateTraget(s) are populated with the remaining matches.

To take advantage of this capability, the endpoint lookup primitive needs to be placed before the service invoke in the mediation flow. The steps you must take are:


Procedure

  1. Create a mediation flow and add all necessary primitives along with creating interfaces and references as needed. Then add the Endpoint Lookup primitive

    to the canvas and wire it to a Service Invoke or Callout.

  2. To enable retrying of alternate endpoints of the same service you have to set the properties of the Endpoint Lookup primitive as well as those of the Service Invoke primitive.

  3. For the Endpoint Lookup primitive:

    1. Right click it and select Show in Properties, then click Details. The details view is presented to you.

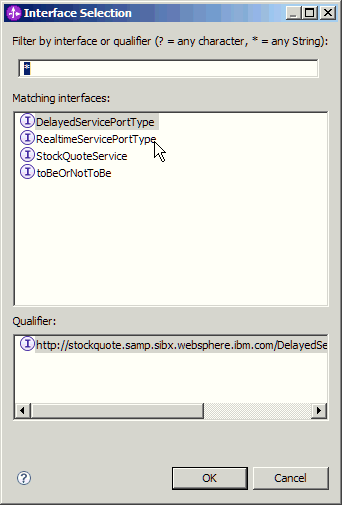

    2. To populate the Name and Namespace of the Port Type (also called interface) click Browse. In the Interface Selection window, choose an interface and click OK.

    3. Type in a registry name or leave <Use default registry> to use the default WSRR.

    4. The Match policy dictates the type of search to be done. Set it to "Return all matching endpoints" to try all alternate endpoints available.

  4. For the Service Invoke:

    1. Set the Retry on property to "Any Fault."
    2. Set the Retry count property to any number greater than 0.

  5. If any fault is returned by the initial service request, the first endpoint in the list populated by the Endpoint Lookup primitive is used. Subsequent retry attempts use the other endpoints in the list, in the order they appear.
