Invoking a service within a flow

Use a Service Invoke mediation primitive to call an intermediate service as part of a normal mediation flow. The result of the call is returned in the same transaction.

Invoking a service within a mediation flow and not at its end is achieved through the use of the Service Invoke primitive. The primitive can be used in both a request and response flow and has properties similar to the callout node of the request flow.

  1. Create a mediation flow. Select Service Invoke from the Service Invocation category of the palette and drop it on the canvas.

  2. Complete the Select Reference Operation window as follows:

    1. Select the required service reference from the list.

    2. Select an operation on the interface of that reference.

    3. Select the Message Enrichment mode check box to enable the Message Enrichment mode. In this mode, a section of the input message, which is received by the in terminal of the Service Invoke mediation primitive, is used for the service invocation. The output message that passes through the out terminal is constructed by merging the response from the service with the original request message that was passed into the mediation primitive.

      If this check box is clear, the default mode is assumed. In this mode, message enrichment does not occur, and the body and header sections of the response message from the service invocation are propagated to the output message.

    4. Click OK.

  3. If the reference has not yet been created:

    1. Click New in the Select Reference Operation window.

    2. In the Add Reference window, type a name for the reference, select an interface, and click OK.

      The reference is then added to the list along with the operations in the interface.

  4. Select the operation you want to invoke and click OK.

    The associated reference and operation names cannot be changed after you have selected them. You will have to create a new primitive in order to do that.

    In Message Enrichment mode, the message type of the in and out terminals must match, but is initially not set. When the in terminal is wired, its message type is defined implicitly (by the input message) and is propagated to the out terminals. In default mode, the in and out terminals are set to the appropriate message types for the interface and operation with which the mediation primitive is associated.

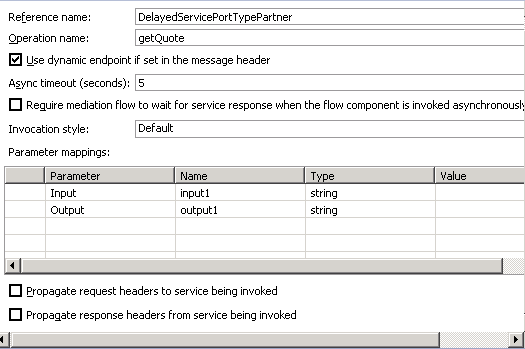

  5. To view the settings available to you, right-click the primitive, and click Show In > Properties View. You are presented with the following view:

  6. Set the properties of the primitive. The following table summarizes the properties of the primitive.

    The Parameter mappings table and the Propagate request headers to service being invoked and Propagate response headers from service being invoked check boxes are enabled only when working in Message Enrichment mode.

    For detailed information, see Service Invoke mediation primitive.

Service Invoke mediation primitive property description
Property Description Possible values
Reference name The reference of the service that is called by the callout.
Operation name The name of the operation called by the callout.
Use dynamic endpoint if set in the message header Determines if the TargetAddress header should be used to override the endpoint if present.

If set to True and if the TargetAddress header is populated, the message is forwarded. Otherwise, the message proceeds normally.

Default: true

Async timeout Specifies the time to wait for a response when performing an asynchronous deferred response invocation.

  • -1 - infinite wait
  • 0 - expects an immediate response
  • 1+ - waits specified number of seconds for a response

If timeout occurs, the fail terminal is fired. This is treated as an unmodeled fault with regard to retry conditions.

Default: 5

Require mediation flow to wait for service response when the flow component is invoked asynchronously with callback Determines if the call should be forced to act in a synchronous manner.

Boolean: true or false

Default: false

Invocation style Determines whether the service is invoked synchronously or asynchronously.

Default, Sync, or Async

Default: Default

Parameter A preconfigured read-only value identifying whether the element to be transformed or updated forms part of the input, output, or fault message.
Name A preconfigured read-only name for the input, output, or fault parameter type.
Type The type of the element value in the message.
Value Specifies an XPath 1.0 expression that identifies the element to be transformed or updated. Use the XPath Expression Builder to build a custom XPath expression.
Propagate request headers to service being invoked Determines whether the request message, which is sent to the service, is populated with the header of the input message that is received at the in terminal.
Propagate response headers from service being invoked Determines whether the output message is populated with the response message header from the service being invoked.
Retry on Determines whether and how fault responses affect retry.

  • Never - operation call is never retried, no matter the type of fault
  • Any fault - operation call is retried on both modeled and unmodeled faults
  • Modeled fault - operation call is retried only when a modeled fault is received
  • Unmodeled fault - operation call is retried only when an unmodeled fault is received


Default: Never

Retry count Number of retry attempts following initial failure before a modeled fault, timeout or fail terminal is fired.

The number must be an integer greater than or equal to 0.


Default: 0

Retry delay Sets the delay between retry attempts, in seconds.

Must be an integer greater than or equal to 0. If 0, there will be no delay between attempts meaning they will run as fast as the server can handle them.


Default: 0

Try alternate endpoints Determines if any alternate endpoints should be used on retries.

  • True - alternate endpoints found in the SMO headers will be used

  • Otherwise they are not tried

This function is only available if 'Use dynamic endpoint' is also True.


Default: True
