JavaScript Object Notation (JSON) format

The JavaScript Object Notation (JSON) format is discussed.

JavaScript Object Notation (JSON) is a lightweight data-interchange format. JSON is easy for humans to read and write. JSON is easy for machines to parse and generate. JSON is based on a subset of the JavaScript Programming Language, Standard ECMA-262 3rd Edition - December 1999. JSON is a text format that is completely language independent but uses conventions that are familiar to programmers of the C-family of languages, including C, C++, C#, Java™, JavaScript, Perl, Python, and many others. These properties make JSON an ideal data-interchange language. More details on the JSON format can be found at Introducing JSON.

The property name in the JSON data should match exactly with the property name in the business object.


Single cardinality contained business object

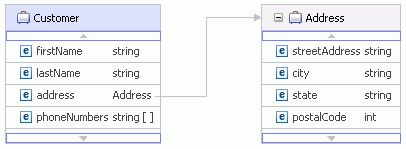

Given the following business object:

And given the following values for the business object properties:

Business object with properties and values
Business Object Property Value
Customer

	Address
firstName
lastName
streetAddress
city
state
postalCode
phoneNumbers[0]
phoneNumbers[1]
John
Smith
21 2nd Street
New York
NY
10121
212-732-1234
646-123-4567

The JSON format is the following:

1	{
2	    "firstName": "John", 3	    "lastName": "Smith", 4	    "address": {
5	        "streetAddress": "21 2nd Street", 6	        "city": "New York", 7	        "state": "NY", 8	        "postalCode": 10021
9	    }, 10	    "phoneNumbers": [
11	        "212-732-1234", 12	        "646-123-4567"
13	    ]
14	}


Multiple cardinality contained business object

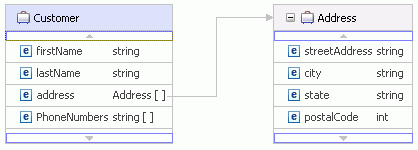

Given the following business object:

And given the following values for the business object properties:

Business object with properties and values
Business Object Property Value
Customer

	Address[0]



	Address[1]
firstName
lastName
streetAddress
city
state
postalCode
streetAddress
city
state
postalCode
phoneNumbers[0]
phoneNumbers[1]
John
Smith
21 2nd Street
New York
NY
10121
577 Airport Blvd
Burlingame
CA
94010
212-732-1234
646-123-4567

The JSON format is the following:

15	{
16	    "firstName": "John", 17	    "lastName": "Smith", 18	    "address": [{
19	        "streetAddress": "21 2nd Street", 20	        "city": "New York", 21	        "state": "NY", 22	        "postalCode": 10021
23	    },{
24	        "streetAddress": "577 Airport Blvd", 25	        "city": "Burlingame", 26	        "state": "CA", 27	        "postalCode": 94010
28	    }], 29	    "phoneNumbers": [
30	        "212-732-1234", 31	        "646-123-4567"
32	    ]
33	}
