Binding-specific headers in a Service Message Object (SMO)
Where data handlers can find the header information for a binding is described.
The sections below list all the header information that is in the system today for each protocol. The highlighted sections indicate the sections that are common and should be available to the data handler in a generic manner.
- JMS header
- MQ header
- HTTP header
- EIS headers in a Service Message Object (SMO)
- EIS Email header
- EIS FTP header
- EIS Flat File header
JMS header
The JMS user properties will be added to the properties section shown below.
MQ header
The MQ rfh2 user folder will be added to the properties section.
Folder is equal to the usr folder in the diagram.

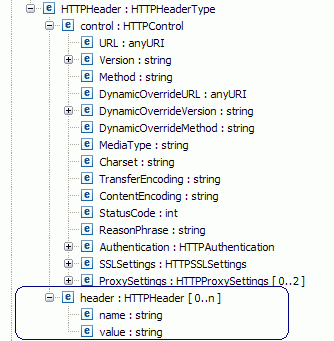

HTTP header
The HTTP custom headers will be added to the properties section in the SMO header.
EIS headers in a Service Message Object (SMO)
The data object that will be set in the EISConnectionSpec and EISInterationSpec classes at run time for the Email, FTP and Flat File adapters is shown below.
The data structure is as follows:
EISHeader EISHeaderType EISConnectionSpec anyType EISInteractionSpec anyType
EIS Flat File header
The ConnectionSpec properties are not required. The InteractionSpec properties for inbound and outbound processing are shown.
EIS Email header
The ConnectionSpec properties are userid and password. The InteractionSpec properties for inbound and outbound processing are shown.

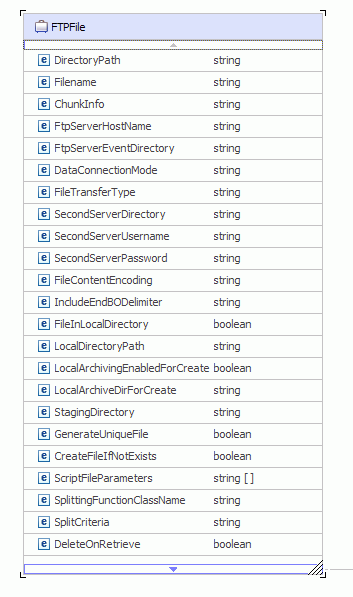

EIS FTP header
The ConnectionSpec properties are userid and password. The InteractionSpec properties for inbound and outbound processing are shown.
