Choose between a BPEL process editor and a business state machine editor

You can model a Business Process Execution Language (BPEL) process application using either the BPEL process editor or the business state machine editor.

You can use either the process editor or the business state machine editor to compose business logic applications, but they use web services differently. Although both editors model a programming language in which individual nodes run in a specific order, in business processes, the services run from the nodes themselves; in business state machines, the services run either when entering, exiting, or moving between nodes.


BPEL processes

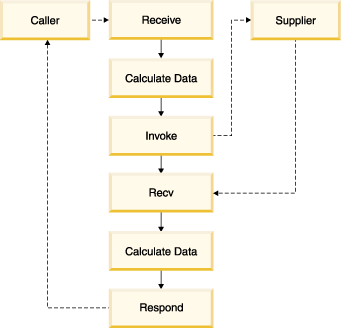

In a BPEL process, the nodes are called activities. There are a small number of incoming events and they arrive in a predictable order. In the following example, a request is passed to the process, the process calls out to another service, waits for a response, and then sends a response back to the caller. Scattered throughout the process are a few activities that use web services to calculate some data.


Business state machines

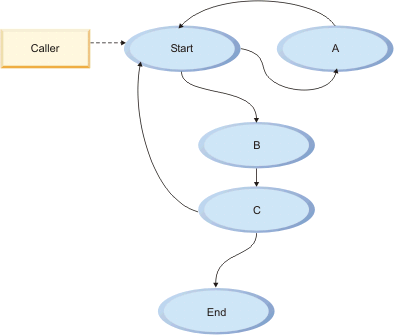

In a business state machine, the nodes are called states, and they tend to be organized in a "spaghetti-like" manner. As control moves from one state to another in the diagram, web services are invoked automatically when they enter, exit, or move between states. When a service is in a particular state, processing stops and waits for an appropriate incoming event. Events typically arrive in larger numbers, and in an unpredictable order. In the following example, a request is passed to the business state machine, it does something, and then it waits for another request.

The run path in a business state machine is not necessarily a direct one, and the business logic can cycle back on itself.


In conclusion

Think of a BPEL process as a series of sequential actions, and the business state machine as a series of loosely related stages that are acted upon. If your application is very linear, then use a BPEL process; if it is primarily event-driven or contains cyclical patterns, then use a business state machine. Both editors, and the languages they model, are equally valid, and it is up to you to determine which one best suits your application design.
