WebSphere MQ JMS bindings overview
The WebSphere MQ JMS binding provides integration with external applications that use the WebSphere MQ JMS provider.
WebSphere MQ administrative tasks
The WebSphere MQ system administrator is expected to create the underlying WebSphere MQ Queue Manager, which the WebSphere MQ JMS bindings will use, before running an application containing these bindings.
WebSphere MQ JMS import bindings
The WebSphere MQ JMS import allows components within your SCA module to communicate
with services provided by WebSphere MQ JMS-based providers. You must be using a supported version of WebSphere MQ. Detailed hardware and software requirements can be found on the
IBM support pages.
Two types of usage scenarios for WebSphere MQ JMS import bindings are supported, depending on the type of operation being invoked:
- One-way: The WebSphere MQ JMS import puts a message on the send destination configured in the import binding. Nothing is sent to the replyTo field of the JMS header.
- Two-way (request-response): The WebSphere MQ JMS import puts a message on the send destination.
The receive destination is set in the replyTo header field. A message-driven bean (MDB) is deployed to listen on the receive destination, and when a reply is received, the MDB passes the reply back to the component.
The import binding can be configured (using the Response correlation scheme field in Integration Designer) to expect the response message correlation ID to have been copied from the request message ID (the default) or from the request message correlation ID.
For both one-way and two-way usage scenarios, dynamic and static header properties can be specified.Static properties can be set from the JMS import method binding. Some of these properties have special meanings to the SCA JMS runtime.
It is important to note that WebSphere MQ JMS is an asynchronous binding. If a calling component invokes a WebSphere MQ JMS import synchronously (for a two-way operation), the calling component is blocked until the response is returned by the JMS service.

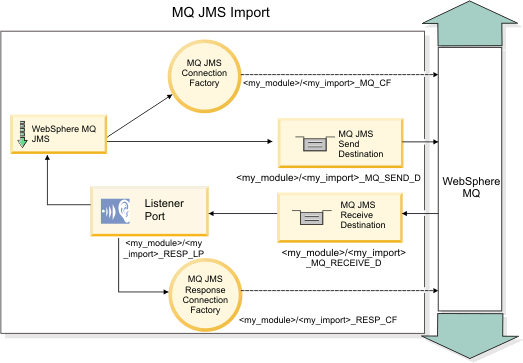

Figure 1 illustrates how the import is linked to the external service.
Figure 1. WebSphere MQ JMS import binding resources
WebSphere MQ JMS export bindings
The WebSphere MQ JMS export binding provides the means for SCA modules to provide services to external JMS applications on the WebSphere MQ-based JMS provider.
An MDB is deployed to listen to requests incoming to the receive destination specified in the export binding. The destination specified in the send field is used to send the reply to the inbound request if the invoked component provides a reply. The destination specified in the replyTo field of the response message overrides the destination specified in the send field.
Figure 2 illustrates how the external requester is linked to the export.
Figure 2. WebSphere MQ JMS export binding resources
Figure 1 and Figure 2 illustrate how an application from a previous version of IBM BPM is linked to an external service. For applications developed for IBM BPM Version 7.0, the Activation specification is used instead of the Listener Port and Connection Factory.
